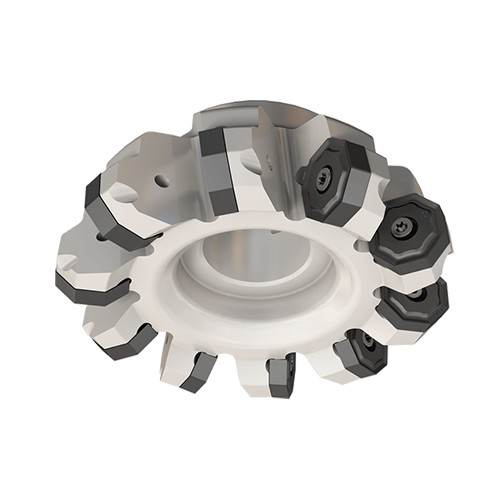

F45NM D125-08-38.10-R08
Screw lock, 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed.

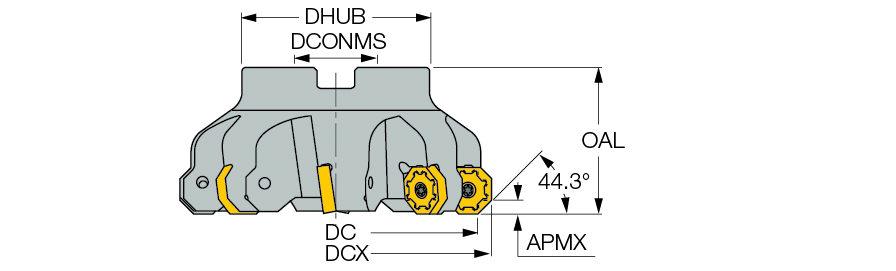

| Cutting Diameter (DC/DCX) | 137 mm | Master Insert Identification (MIID) | ONHU 080608-TN |
| Cutting Diameter (DC) | 125 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 137 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5.5 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 44.3 Degrees |
| Hub Diameter (DHUB) | 80 mm | Tool Type | 45° Facemills |

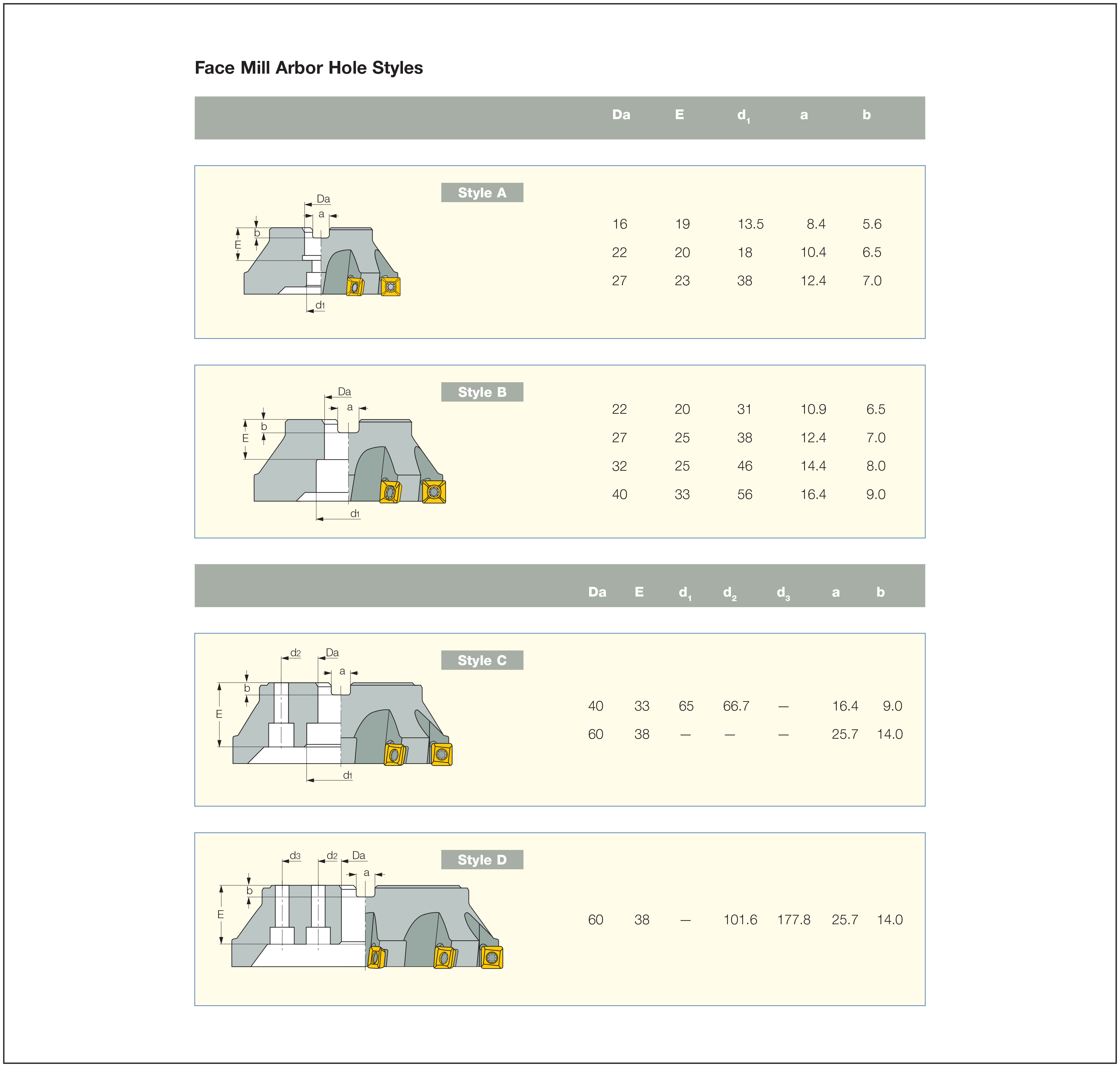

| Arbor Style | B |
Product Features
| Family Description | Screw lock, 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed. | Country of Origin | Turkey |
| Remarks | Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters |
Shipping Info
Package Weight
7.341
