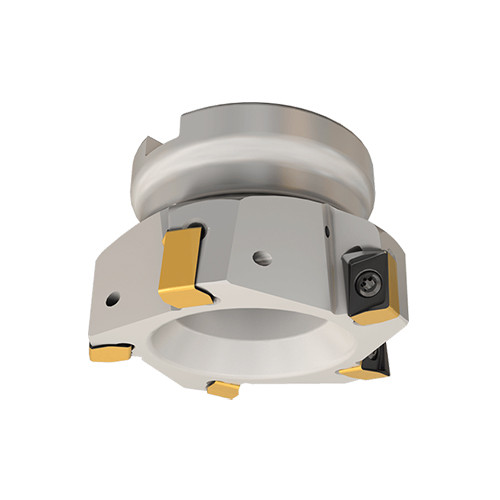

H490 F90AX D080-5-27-12
90° face mills carrying H490 ANKX 12.. double-sided rectangular inserts with 4 helical cutting edges.
| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | H490 ANKX 1205PNTR-R |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 12 mm | Application | | Facing | Shouldering | Side Plunging | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 49.77 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 63 mm | Tool Type | 90° Facemills |
| Arbor Style | B |
Product Features
| Family Description | 90° face mills carrying H490 ANKX 12.. double-sided rectangular inserts with 4 helical cutting edges. | Country of Origin | Israel |

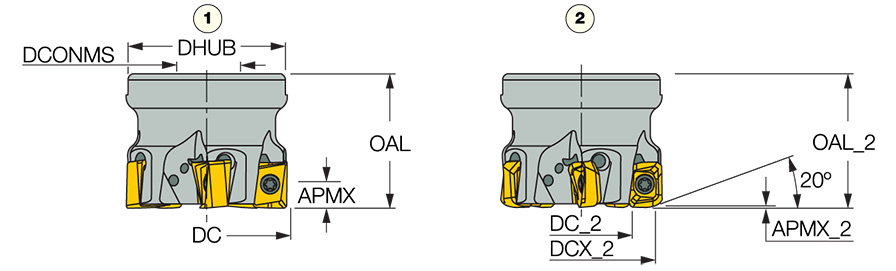

| Remarks | 1- with standard square insert, 2- with FF (fast feed) insert Ramping angle is valid only when H490 ANKX ANCX 1205R15T-FF insert is used When assembled the H490 ANCX 1205R15T-FF insert, tool diameter enlarges by 0.5 mm |
Shipping Info
Package Weight
2.165
