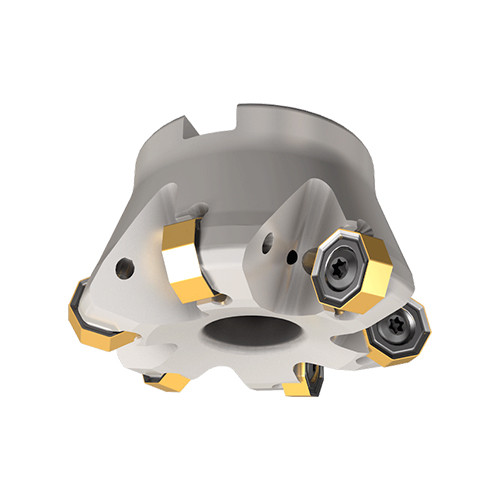

FF SOF 8/16-D063-06-22R
Fast feed milling cutter, carrying square or octagonal double-sided inserts with 8/16 cutting edges.
| Cutting Diameter (DC/DCX) | 68.4 mm | Master Insert Identification (MIID) | ONHU 050500-N-HP |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 68.4 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.7 mm | Application | | Facing | Fast Feed Milling | Profiling | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40.4 mm | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Hub Diameter (DHUB) | 65.6 mm | Tool Type | Fast Feed Face mill |

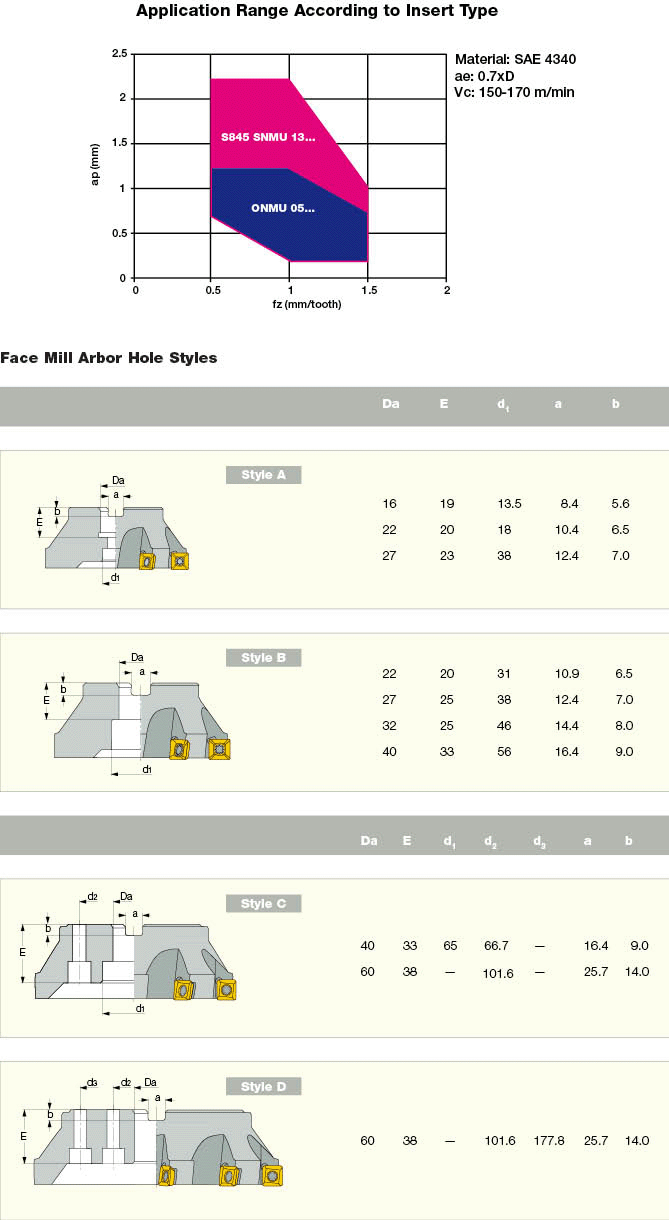

| Arbor Style | B |
Product Features
| Family Description | Fast feed milling cutter, carrying square or octagonal double-sided inserts with 8/16 cutting edges. | Country of Origin | Israel |

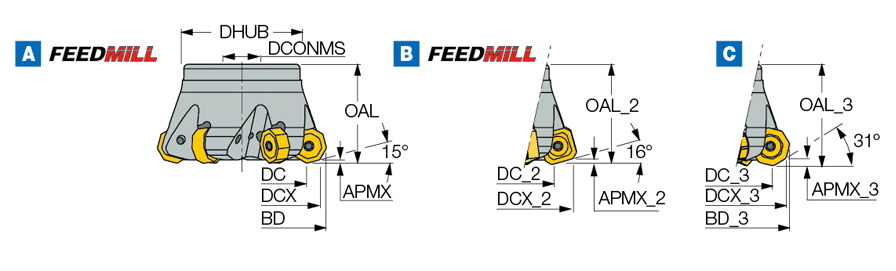

| Remarks | A- with ONMU 0505... insert B- with S845 SNMU 1305... insert C- with OXMT 0507R08-FF insert Use only Torx Plus keys For adaptation click on More Info |
Shipping Info
Package Weight
1.431
