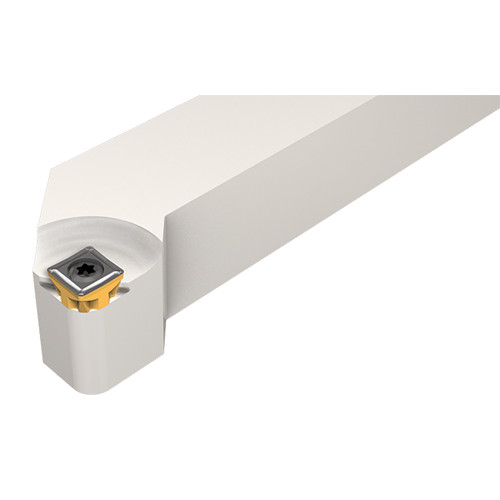

SUXCR 1616H-10 CM

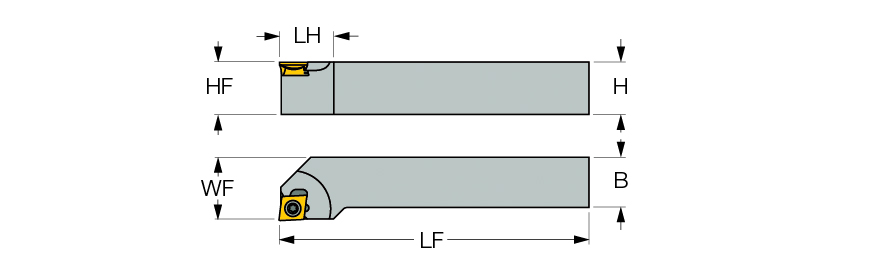

| Shank Height (H) | 16 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Width (B) | 16 mm | Body Material | Steel |
| Functional Length (LF) | 100 mm | Cutting Position | External |
| Head Length (LH) | 24 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 20 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Style | SCLCL08-3A |
| Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Q#MG 95° Approach | Ext. 90°Square 45°Face&Turn Ap | Ext. Round Face & Turn | | Insert Style | 100mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
Product Features

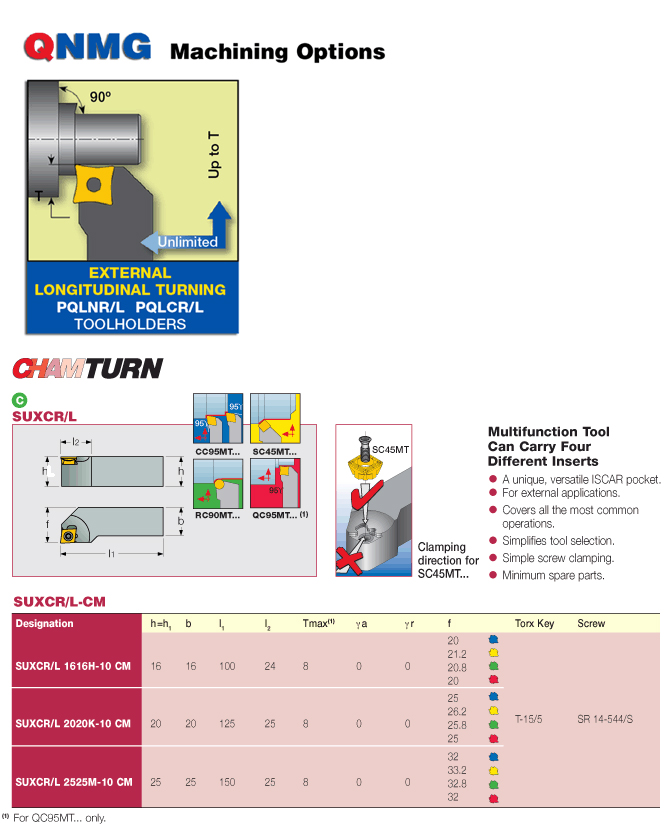

| Family Description | Screw lock tools for four different 7° clearance geometries. . | Country of Origin | Israel |
| Remarks | The displayed data, for other combinations and for Tmax, click on More Info |
Shipping Info
Package Weight
0.522
