SOF45 D063-05-27-R18
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 48.5 mm OAL × 5 mm LOC ; 5 Inserts ; 45 Degrees

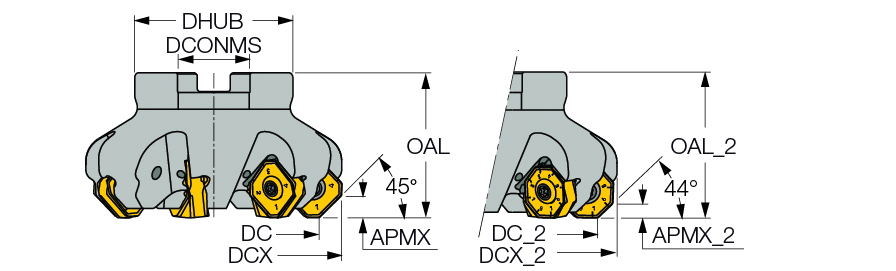

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | ONMU 0706 |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 48.5 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 60 mm | Tool Type | 45° Facemills |
| Arbor Style | A |
Product Features
| Family Description | 45° face mills carrying square or octagonal double-sided inserts with 8/16 cutting edges. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.238
