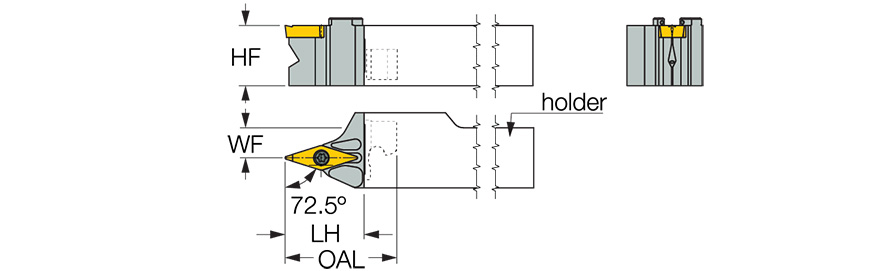

| Overall Length (OAL) | 1.134″ | Application | | Ext. 35° Diamond 72.5° Approac | |
| Head Length (LH) | 0.827″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 0.315″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | VC..1103.. |
Product Features

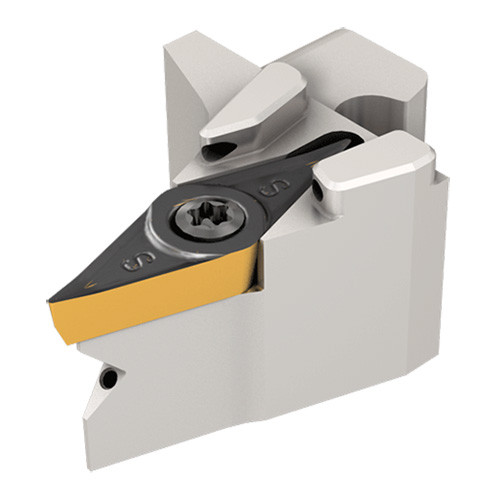

| Family Description | Screw lock JETCUT modular heads carrying 35° rhombic inserts with 7° clearance angle for swiss-type machines | Country of Origin | Israel |
| Remarks | Use only RH Shank with RH Head and LH Shank with LH Head |
