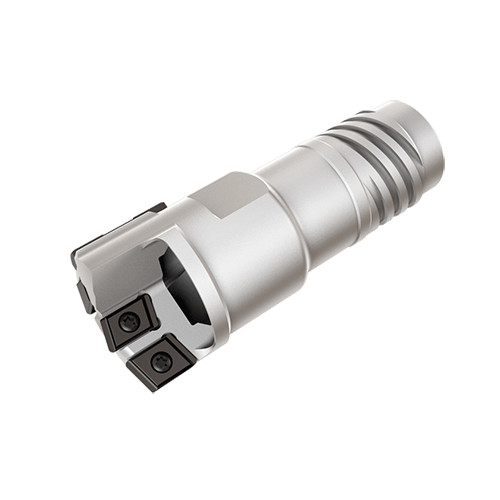

ISD-EF 1.426-1.559-FB

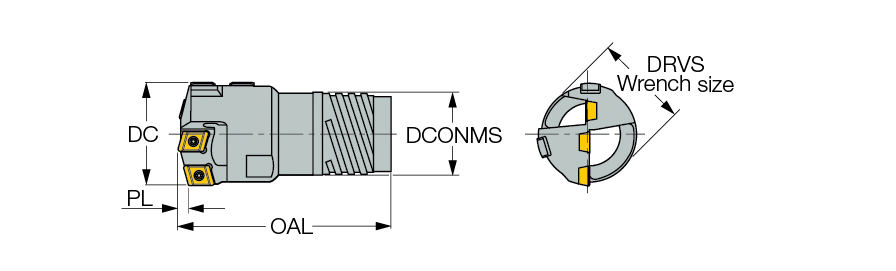

| Application | | Deep Drilling | | Connection Thread Size (Ts) | TS-I11 |
| Connection Diameter Machine Side (DCONMS) | 1.181″ | Cutting Diameter Minimum (DCN) | 1.426″ |
| Tool Type | Deep Hole / Gun Drill | Cutting Diameter Maximum (DCX) | 1.559″ |
| Overall Length (OAL) | 3.661″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
Product Features
| Family Description | Deep single tube drills with external 4-start thread connection for high feed. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | Country of Origin | Japan |
| Remarks | Inserts and guide pads to be ordered separately Ordering example: DSD-EF 1.697-FB For quotation form and user guide, click on More Info |
