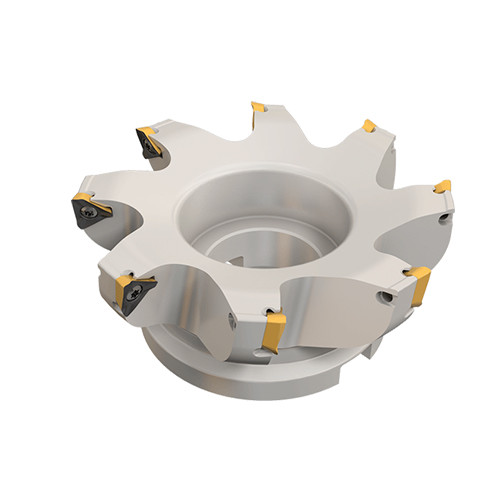

HM390 FTD D5.00-9-1.5-15
90° face mills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges.
| Cutting Diameter (DC/DCX) | 5″ | Master Insert Identification (MIID) | HM390 TDKT 1505PDR |
| Cutting Diameter (DC) | 5″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.512″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 3.22″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | B | Tool Type | 90° Facemills |
Product Features
| Family Description | 90° face mills carrying HM390 TDKT 1505 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
| Remarks | When assembled the HM390 TDKT 1505PDR-FW insert, tool diameter enlarges by .04 |
Shipping Info
LocalField10
0
Package Weight
5.888
