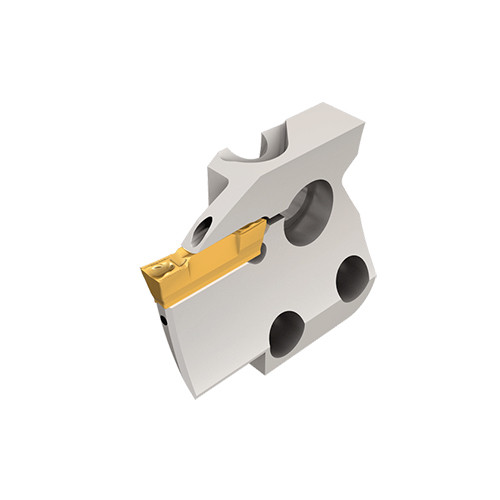

HFPAD 4L-175-T20-JHP
Adapters for face grooving and turning, for 1.57-118″ diameter range. Part of the MODULAR-GRIP system

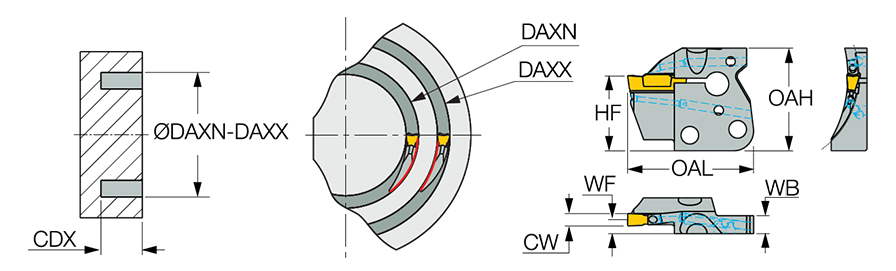

| Cutting Depth Maximum (CDX) | 0.787″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.157″ | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 31-1/2″ | Functional Width (WF) | 0.189″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 6.89″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.791″ |
Product Features
| Family Description | Adapters for face grooving and turning, for 1.57-118″ diameter range. Part of the MODULAR-GRIP system | Country of Origin | Israel |
| Remarks | WF(assembly)=WF(shank) + WF(adapter) HGN,GRIP,DGN inserts can be used only with right-hand adapters, HGPL inserts with left-hand adapters For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
0.090
