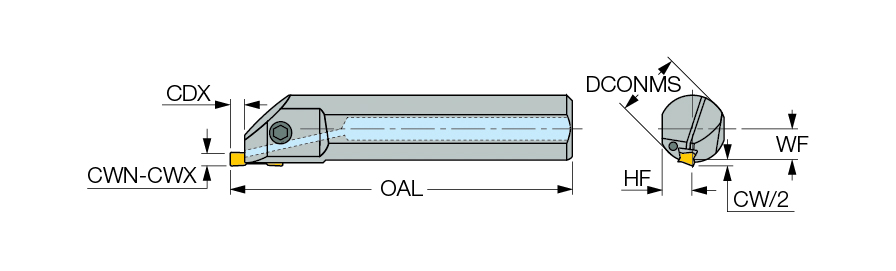

| Cutting Depth Maximum (CDX) | 0.197″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Width (CW) | 0.157″ | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width Maximum (CWX) | 0.236″ | Tool Type | Indexable Turn & Groov Tools |
| Cutting Width Minimum (CWN) | 0.118″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 0.45″ |
| Overall Length (OAL) | 8″ | Measurement Type | Inch |
Product Features

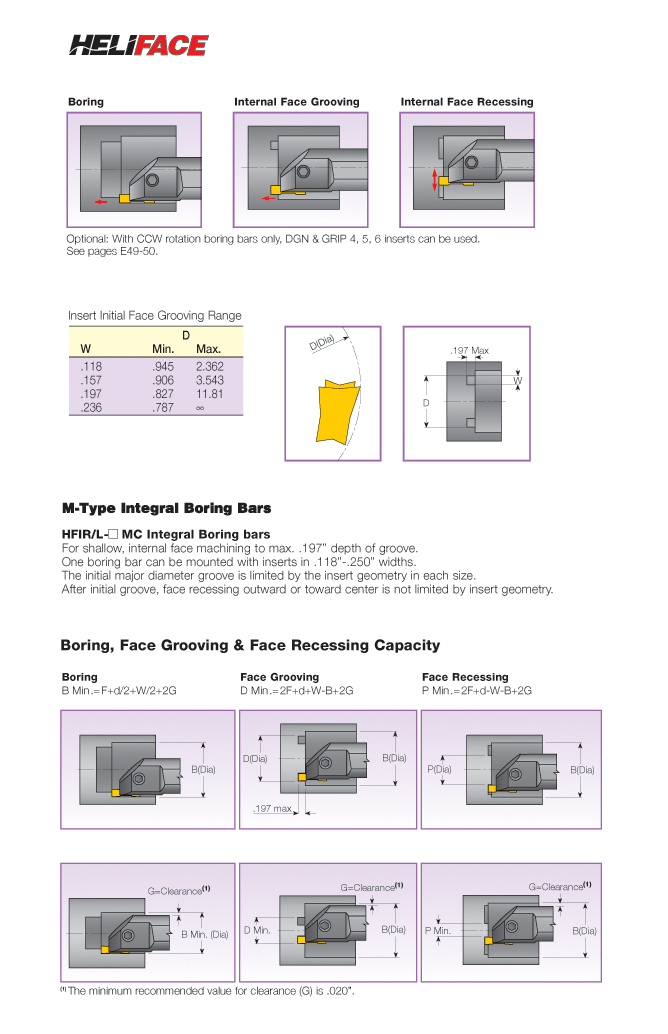

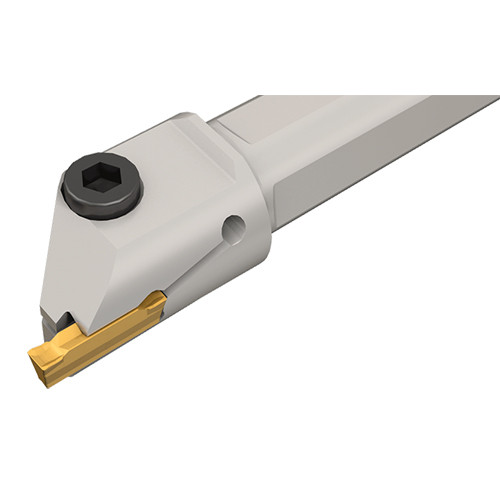

| Family Description | Boring bars for internal grooving and turning. Dmin .787″. | Country of Origin | Israel |
| Remarks | For insert clamping instructions, click on More Info |
Shipping Info
LocalField10
0
Package Weight
1.391
