IM40 HAD

Name: IM40 HAD
Brand: ISCARGRIP
SKU: 2500505
Price: 554.60 USD
Availability: InStock

Item # 2500505

Brand: Iscar

MFG #: 2500505

Alternate MFG #: 02500505

Legacy Part #: EH2500505

UPC #: 7291075103908

Trade Name: HELIFACE TOOLS - INTEGRAL

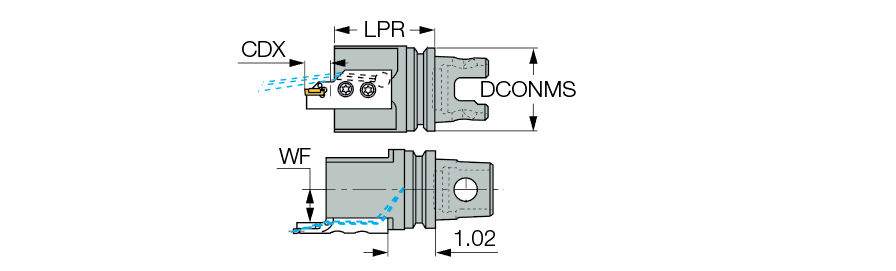

Overall Length (OAL)

2.362″

Body Material

Steel

Connection Diameter Machine Side (DCONMS)

1.575″

Functional Width (WF)

0.709″

Tool Type

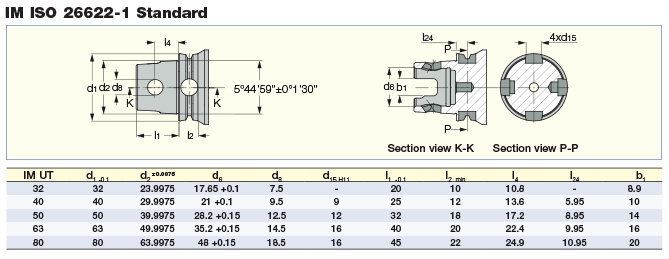

‎ISO 26622-1 (KM, IM)

Measurement Type

Inch

Shank Standard

Product Features

Family Description

‎Holders with an ISO 26622-1(*)tapered shank for internal facing adapters.

Country of Origin

Israel

Remarks

(*) Tools with orientation holes in the flange groove can be supplied on request

Package Weight

1.980
