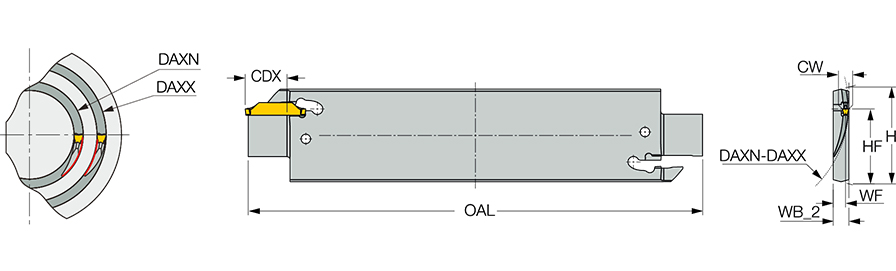

| Shank Height (H) | 1.26″ | Overall Length (OAL) | 5.906″ |
| Cutting Depth Maximum (CDX) | 0.551″ | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Width (CW) | 0.079″ | Tool Type | Face Grooving Tools |
| Cutting Direction (HAND) | Neutral | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 2.36″ | Functional Width (WF) | 0.173″ |
| Axial Groove Outside Diameter Minimum (DAXN) | 1.77″ | Measurement Type | Inch |
Product Features

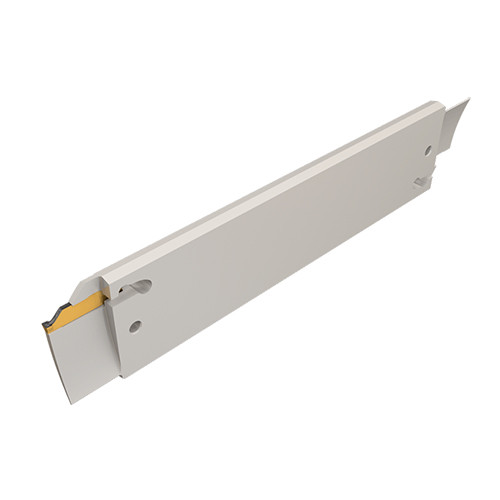

| Family Description | Face grooving blades | Country of Origin | Israel |
Shipping Info
Package Weight
0.359
