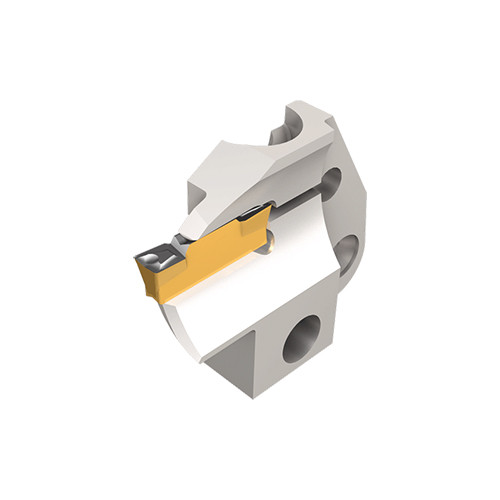

HFPAD 4L-175-T20
Adapters for face grooving and turning in the .984-31″ diameter range. Part of the MODULAR-GRIP system

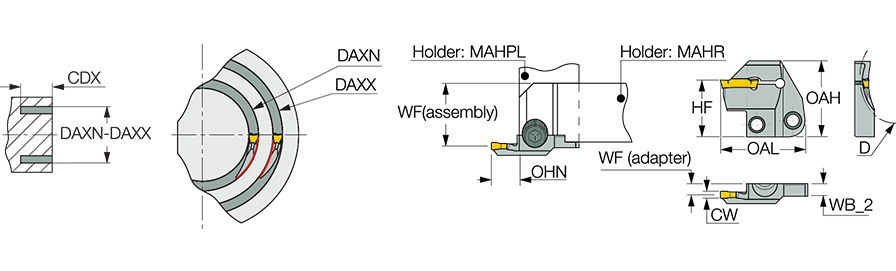

| Cutting Depth Maximum (CDX) | 0.787″ | Overall Length (OAL) | 1.791″ |
| Cutting Width (CW) | 0.157″ | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width Maximum (CWX) | 0″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Minimum (CWN) | 0″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 0.189″ |
| Axial Groove Outside Diameter Maximum (DAXX) | 31-1/2″ | Measurement Type | Inch |
| Axial Groove Outside Diameter Minimum (DAXN) | 6.89″ |
Product Features
| Family Description | Adapters for face grooving and turning in the .984-31″ diameter range. Part of the MODULAR-GRIP system | Country of Origin | Israel |
| Remarks | WF(assembly)=WF(shank) + WF(adapter) DGN & GRIP 4.. inserts can be used only with right-hand adapters, HGPL 4..inserts with left-hand adapters For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD. For insert clamping instructions, click on More Info |
Shipping Info
Package Weight
0.093
Related Documentation
Inserts: GRIP 4...Y & 476-...Y, DGN 4003C/J can be used with right-hand adapters for grooving only
