BHDN 31.7-10-33
Broaching holders for lathe and milling machines

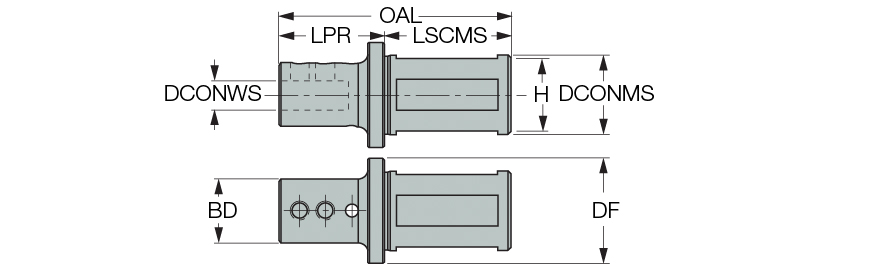

| Protruding Length (LPR) | 50mm | Tool Type | Round Shanks |
| Body Diameter (BD) | 0.787″ | Hole Depth | 0.787″ |
| Overall Length (OAL) | 2.874″ | Holding Length | 2.874″ |
| Connection Diameter Workpiece Side (DCONWS) | 0.394″ | Master Insert Identification (MIID) | SCB 010 |
| Minimum Bore Diameter (DMIN) | 30mm | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
Product Features
| Family Description | Broaching holders for lathe and milling machines | Country of Origin | Israel |
Shipping Info
Package Weight
0.827
