IHSR 91-122 BW

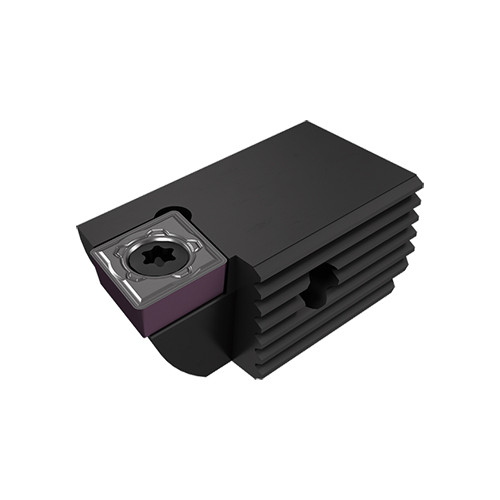

Back face turning tools for BHR rough boring heads.
| Body Diameter (BD) | 3.346″ | Application | | Int. Back Turning 80° Diamond | |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 3.583″ | Tool Type | Indexble Boring heads |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 4.803″ | Nose Diameter | 3/4″ |
| Shank Size (SS) | BHR MB63-63 | Cutting Diameter Minimum (DCN) | 3.583″ |
| Cutting Diameter Maximum (DCX) | 4.803″ | Internal/External | Internal |
| Shank Size Machine Side | 3/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | CCMT 43... | Grade | 4551101 |
| Body Material | Steel |
Product Features
| Family Description | Back face turning tools for BHR rough boring heads. | Country of Origin | Italy |

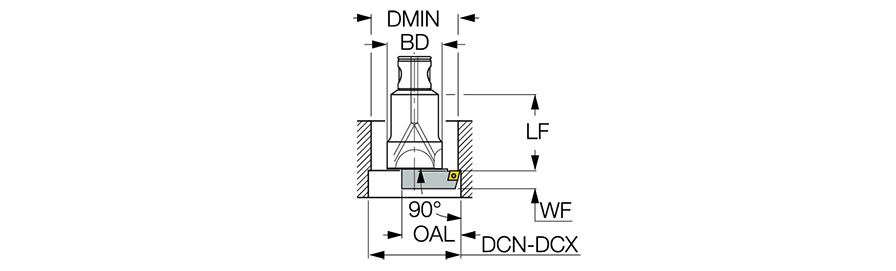

| Remarks | DMIN=(min bore diameter)=(DCN+BD+1)/2 BD=Size of the boring head being used |
Shipping Info
Package Weight
0.745
