IHPR 68-90

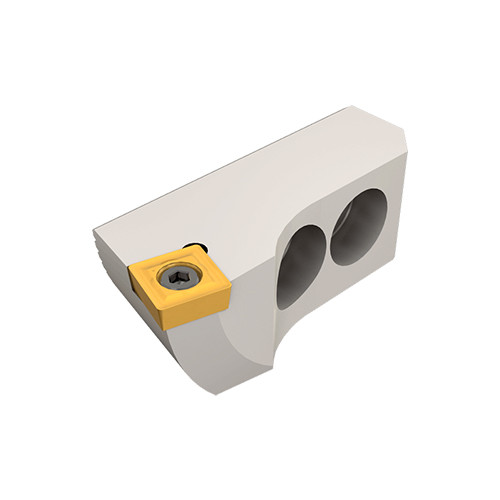

75° rough boring toolholders used on the MB modular boring system.
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 2.677″ | Tool Type | Indexble Boring heads |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 3.543″ | Nose Diameter | 3/4″ |
| Shank Size Machine Side | 3/4″ | d_max | 3.543″ |
| Master Insert Identification (MIID) | SCMT 43... | Internal/External | Internal |
| Body Material | Steel | Measurement Type | Inch |
| Application | | Int. 90° Square 75° Approach | | Grade | 4550325 |
Product Features
| Family Description | 75° rough boring toolholders used on the MB modular boring system. | Country of Origin | Italy |
Shipping Info
LocalField10
0
Package Weight
0.273
