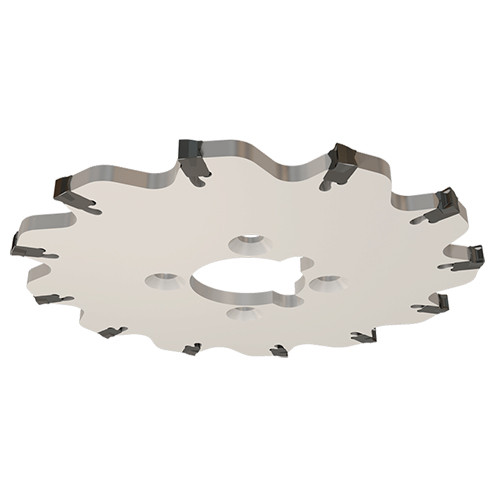

SGSA 100-4-1.00K-12Z-FP
Slitting cutters Carrying GSAN self-clamped inserts.
| Cutting Diameter (DC) | 3.94″ | Master Insert Identification (MIID) | GSAN 4 |
| Cutting Item Count (CICT) | 12 | Application | | Side Slotting | Slitting | T Slotting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 12 | Rotational Speed Maximum (RPMX) | 795 Rev/min |
| Cutting Depth Maximum (CDX) | 0.78″ | Tool Type | Slitting cutters |
| Hub Thickness (THUB) | 0.13″ | Measurement Type | Inch |
| Cutting Width Maximum (CWX) | 0.178″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.139″ | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Slitting cutters Carrying GSAN self-clamped inserts. | Country of Origin | Israel |

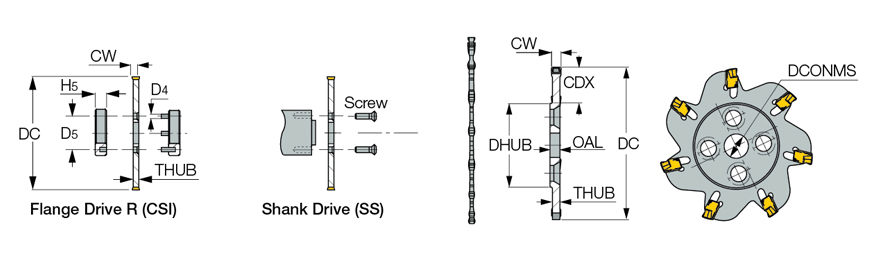

| Remarks | For LB,DBS,D4 refer to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded |
Shipping Info
Package Weight
0.483
