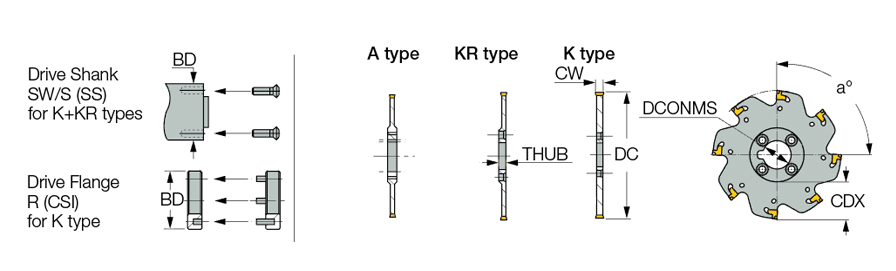

| Cutting Diameter (DC) | 125 mm | Master Insert Identification (MIID) | TAG N3C |
| Cutting Item Count (CICT) | 10 | Application | | Side Slotting | Slitting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Rotational Speed Maximum (RPMX) | 3820 Rev/min |
| Cutting Depth Maximum (CDX) | 34 mm | Tool Type | Slitting cutters |
| Hub Thickness (THUB) | 2.5 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 3.05 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 3 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features

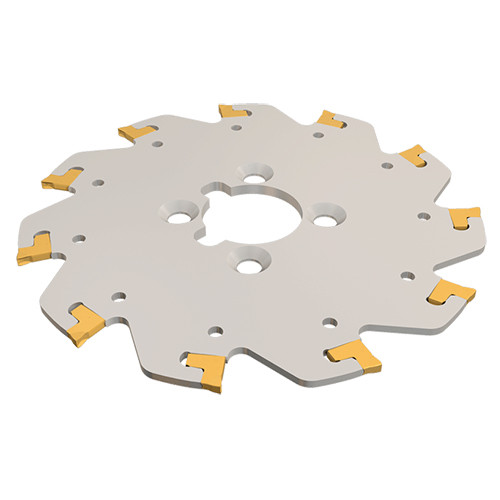

| Family Description | TANGSLIT slitting cutters carrying TANG-GRIP inserts. | Country of Origin | Israel |
| Remarks | DC varies slightly due to different chip formers having different lengths For precision operations it is recommended to verify diameter offset before machining For drive flange set dimensions, refer to Related Holder |
Shipping Info
LocalField10
0
Package Weight
0.667
