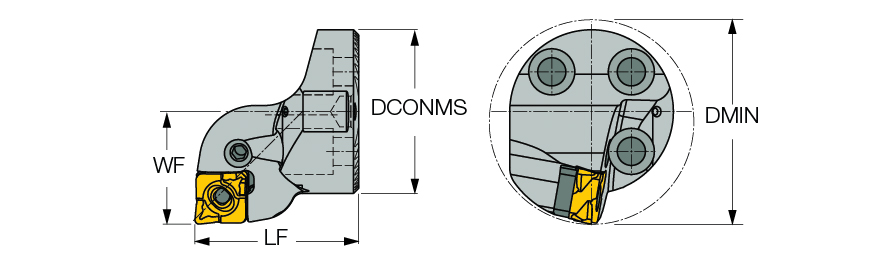

| Functional Length (LF) | 1.102″ | Rake Angle Axial (GAMP) | -5 Degrees |
| Functional Width (WF) | 0.669″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Weight of Item (WT) | 0.13 lbs |
| Inscribed Circle Diameter (IC) | 0.368″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.26″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Application | | Int. 80° Diamond 95° Approach | |
Product Features
| Family Description | .Interchangeable boring heads carrying 80° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.179
