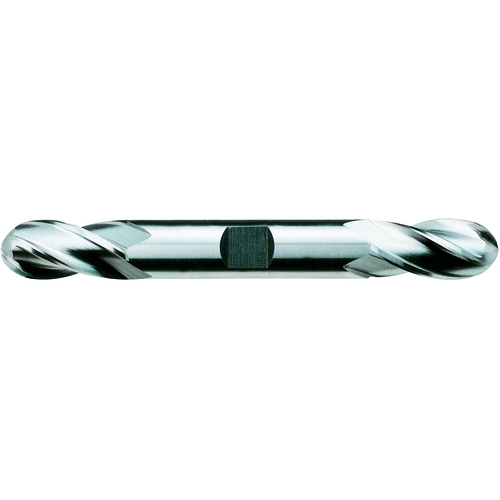

Ball Nose End Mill; 1″ Dia. × 1-7/8″ LOC × 1″ Shank Dia. × 6-3/8″ OAL ; 4 FL ; HSSCo8 ; Bright ; Series E2069
| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Length Group | Regular |
| Depth of Cut Maximum (APMX) | 1-7/8″ | End Shape | Ball Nose |
| Overall Length (OAL) | 6-3/8″ | Decimal Equivalent | 1″ |
| Cutting Edge Material | HSSCo8 | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | E2069 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Weldon | Single / Double End | Double |
| Applicable Material | | Steel | |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
6.5
Package Width
1.25
Package Height
1.25
Package Weight
1.0615
