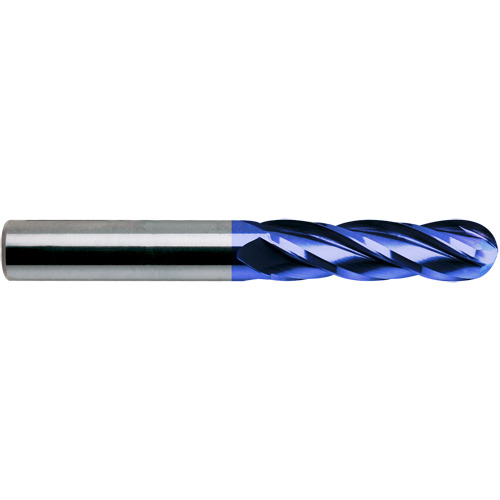

Ball Nose End Mill; 3/8″ Dia. × 1-1/8″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; TiCN ; Series E5060
| Cutting Diameter (DC) | 3/8″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 3/16″ |
| Depth of Cut Maximum (APMX) | 1-1/8″ | Length Group | Long |
| Overall Length (OAL) | 3″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E5060 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 1-1/8″ |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.1635
