ECD-S2 100/90C10-72 IC900

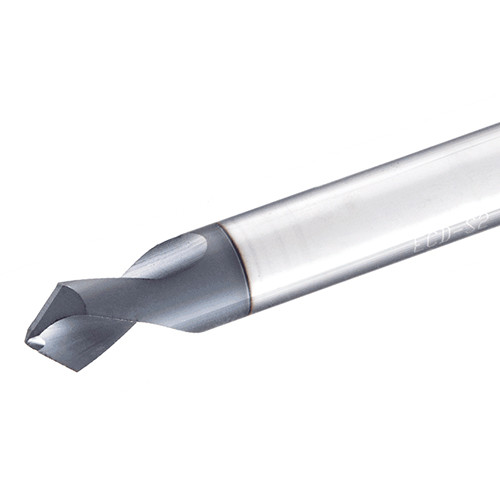

Two flute chamfering, countersinking and spot drilling s olid carbide endmills.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Chamfering | Countersinking | Drill Mill | Drilling | Slanted Shoulder & Chamfer | | Coating | AlTiN |

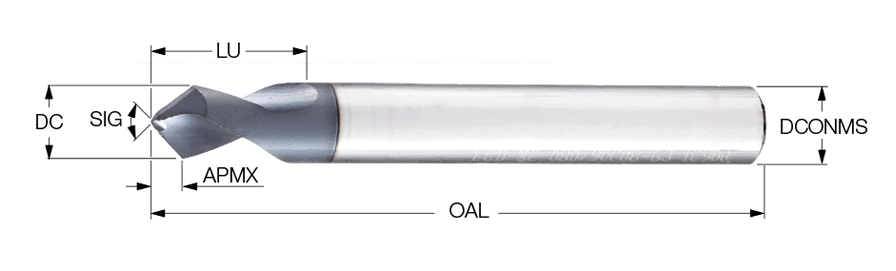

| Cutting Diameter (DC) | 10 mm | Grade | IC900 |
| Usable Length (LU) | 20 mm | Shank Type | Round |
| Flute Count (NOF) | 2 | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 4.55 mm | Measurement Type | Metric |
| Overall Length (OAL) | 72 mm | Series/List # | 64 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Body Material | Carbide |
| Point Angle (SIG) | 50 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Two flute chamfering, countersinking and spot drilling s olid carbide endmills. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.17
