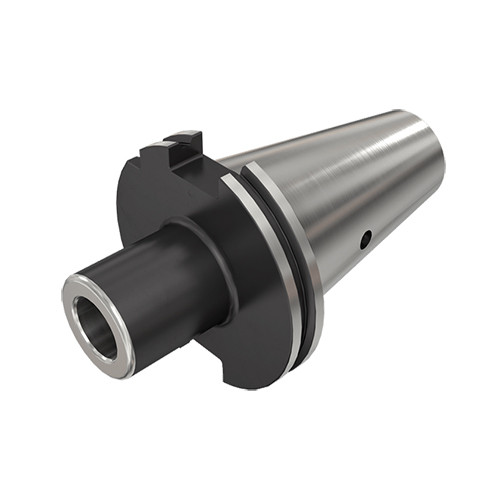

DIN69871 40 MT3 DRW
DIN 6364 Morse taper adapters with DIN 228-2 form B draw bar and DIN 69871 form A taper shanks.
| Shank Size (SS) | 40 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 70 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Length (LB) | 50.9 mm | Tool Type | DIN 69871 |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Metric |
| Shank Standard | DIN69871 | Body Material | Steel |
| Application | | DIN 69871 (ISO7388 1) | Taper Adapters | | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | DIN 6364 Morse taper adapters with DIN 228-2 form B draw bar and DIN 69871 form A taper shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
2.573
