DIN69871 50 MT2X 60

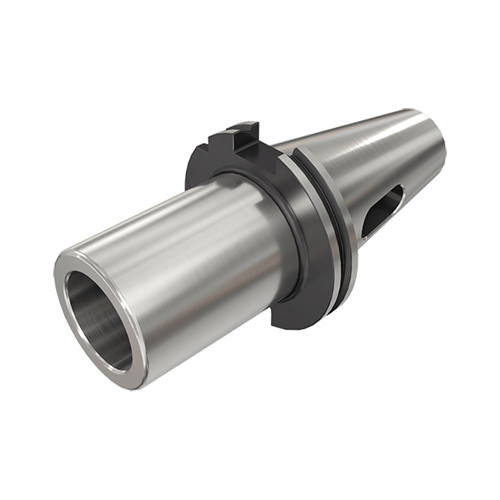

DIN 6383 Morse taper adapters with DIN 228-2 form D tang and DIN 69871 form A taper shanks.

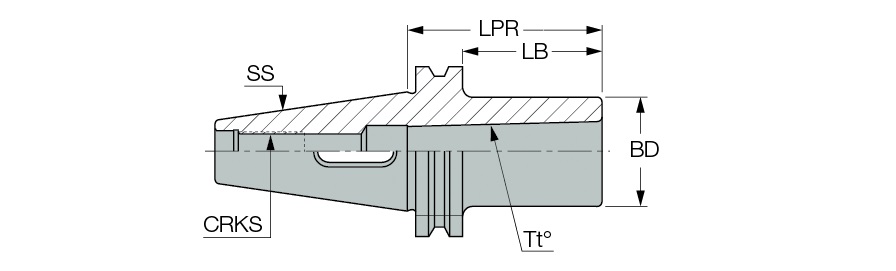

Shank Size (SS) | 50 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
Protruding Length (LPR) | 60 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
Body Length (LB) | 40.9 mm | Tool Type | DIN 69871 |
Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Metric |
Shank Standard | DIN69871 | Body Material | Steel |
Application | | DIN 69871 (ISO7388 1) | Taper Adapters | | Connection Code Machine Side (CCMS) | DIN69871 |





Product Features
Family Description | DIN 6383 Morse taper adapters with DIN 228-2 form D tang and DIN 69871 form A taper shanks. | Country of Origin | Turkey |
Shipping Info
Package Weight
6.411
