DC MB63 B16

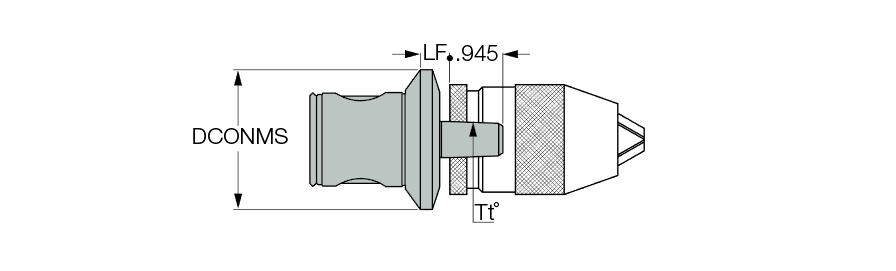

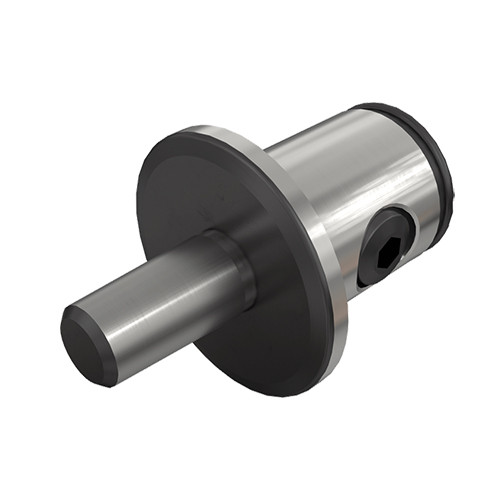

DIN238 DC drill chuck arbor with the MB modular connection system.
| Shank Size (SS) | MB63 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 0.531″ | Tool Type | MB General Tools Holders |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Application | CAT50 |
Product Features
| Family Description | DIN238 DC drill chuck arbor with the MB modular connection system. | Country of Origin | Italy |
| Remarks | Without drill chuck. |
Shipping Info
Package Weight
1.843
