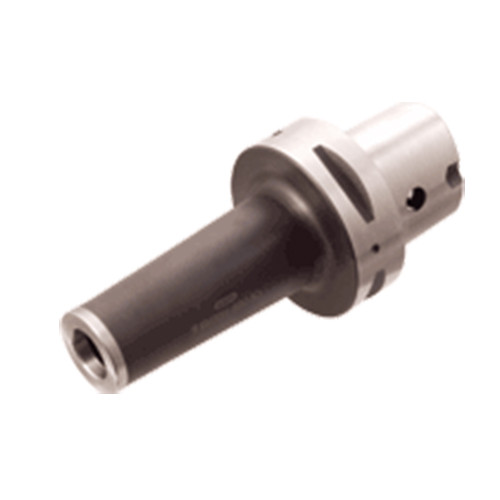

C6 ODP 12X55
FLEX-FIT threaded connection shanks with CAMFIX (ISO 26623-1) adaptation

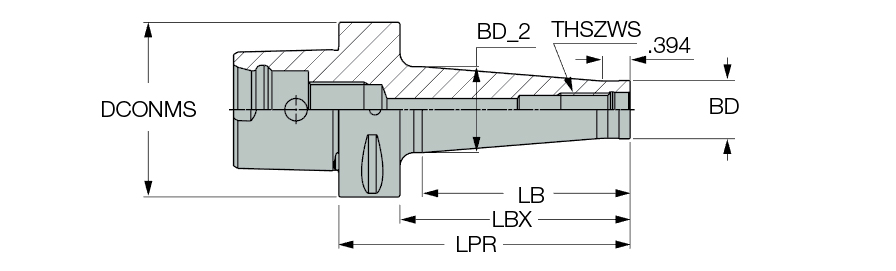

| Shank Size (SS) | 63 | Application | | FLEXFIT | ISO 26623 1 (CAMFIX) | |
| Protruding Length (LPR) | 2.165″ | Connection Thread Nominal Size Workpiece Side (THSZWS) | M12 |
| Body Length (LB) | 0.984″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Diameter (BD) | 0.925″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Size Work Piece Side (DCONWS) | #2 | Coolant Supply Property (CSP) | Through Hole |
| Shank Standard | CAMFIX | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
Product Features
| Family Description | FLEX-FIT threaded connection shanks with CAMFIX (ISO 26623-1) adaptation | Country of Origin | Israel |
Shipping Info
Package Weight
2.024
