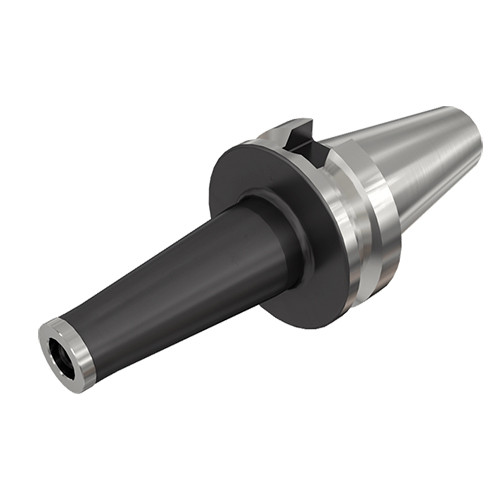

BT40 ODP12X 66
FLEX-FIT threaded adaptation with integral BT MAS-403 tapered shanks (ADB type).

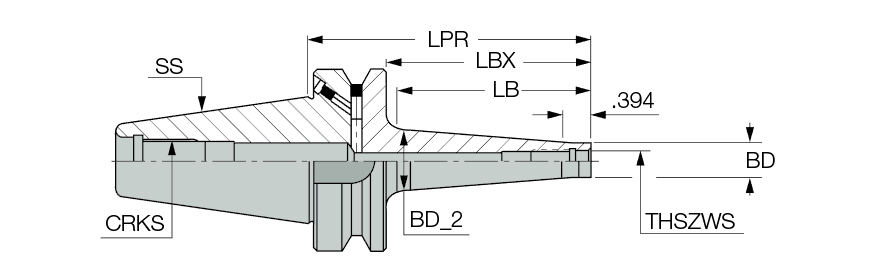

| Shank Size (SS) | 40 | Connection Thread Nominal Size Workpiece Side (THSZWS) | M12 |
| Protruding Length (LPR) | 2.598″ | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Body Length (LB) | 1.181″ | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Diameter (BD) | 0.945″ | Tool Type | BT |
| Connection Size Work Piece Side (DCONWS) | #2 | Coolant Supply Property (CSP) | Through Hole |
| Shank Standard | BT | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Application | | BT | FLEXFIT | | Connection Code Machine Side (CCMS) | BT |
Product Features
| Family Description | FLEX-FIT threaded adaptation with integral BT MAS-403 tapered shanks (ADB type). | Country of Origin | Italy |
| Remarks | For adaptation Click on More Info. The coolant passages in the B type flange are blocked with screws which can be removed when required. |
Shipping Info
Package Weight
2.423
