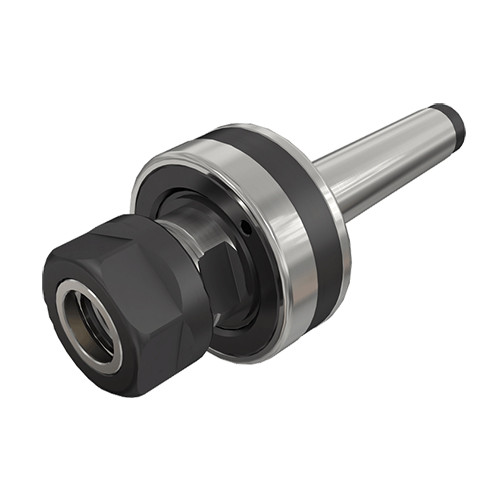

GFI MT 3 ER32

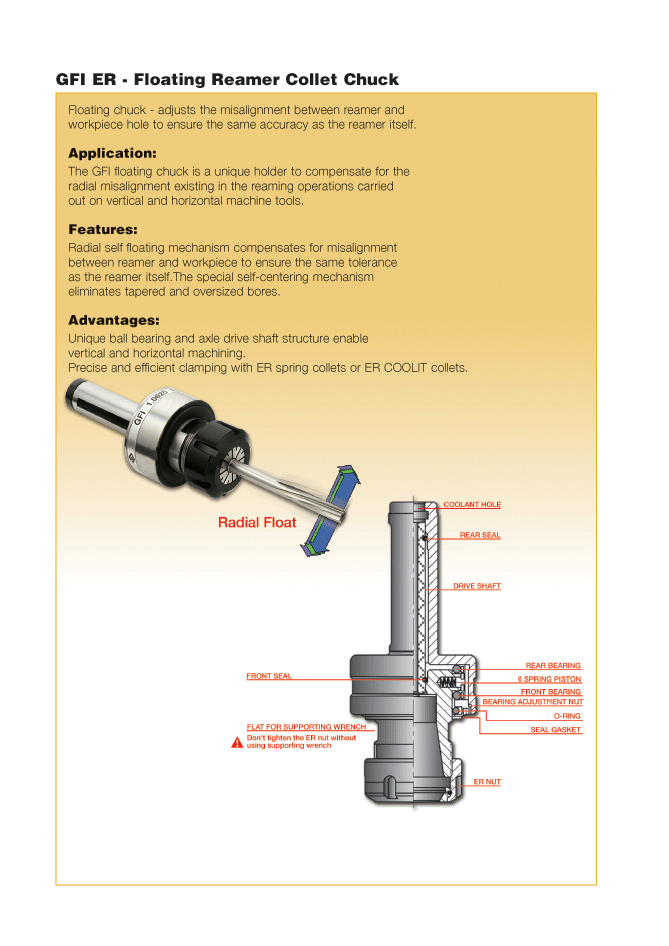

Floating reamer DIN 6499 collet chucks with Morse tapered shanks.

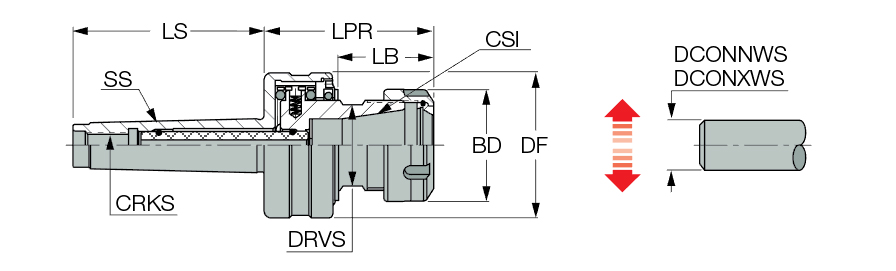

| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Diameter (BD) | 50 mm | Body Length (LB) | 45.9 mm |
| Flange Diameter (DF) | 65 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 76.9 mm | Shank Length (LS) | 86 mm |
| Tool Type | Morse Taper | Overall Length (OAL) | 162.9 mm |
| Radial Float (RFI) | 1.6 mm | Weight of Item (WT) | 1.23 Kg |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm | Body Material | Steel |
Product Features
| Family Description | Floating reamer DIN 6499 collet chucks with Morse tapered shanks. | Country of Origin | Israel |
| Remarks | ! Maximum RPM 2000. For Adaptation Click on More Info. |
Shipping Info
Package Weight
2.767
