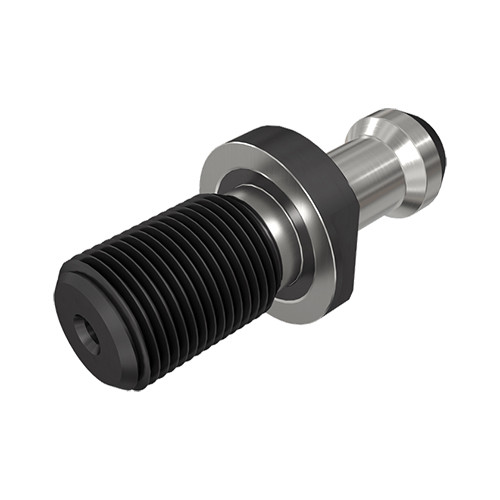

PS CAT40 60 5/8 MAS2
CAT pull studs with MAS retention knobs.
| Shank Size (SS) | 40 | Measurement Type | Inch |
| Body Diameter (BD) | 0.512″ | Tool Type | Accessories and Devices |
| Connection Retention Knob Thread Size (CRKS) | 5/8-11 | Body Half Taper Angle (BHTA) | 60 Degrees |
| Body Length (LB) | 0.99″ | Body Material | Steel |
| Overall Length (OAL) | 2.252″ | Flange to Knob Length | 0.91″ |
| Application | | Collets & Accessories | | Flange to Angle Length | 0.71″ |
Product Features
| Family Description | CAT pull studs with MAS retention knobs. | Country of Origin | Italy |

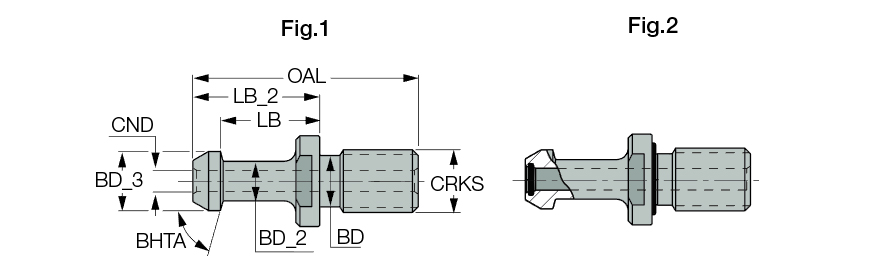

| Remarks | Fig 1: With coolant holes only (in items with a B suffix) Fig 2: With coolant holes, external and internal O-rings |
Shipping Info
LocalField10
0
Package Weight
0.165
