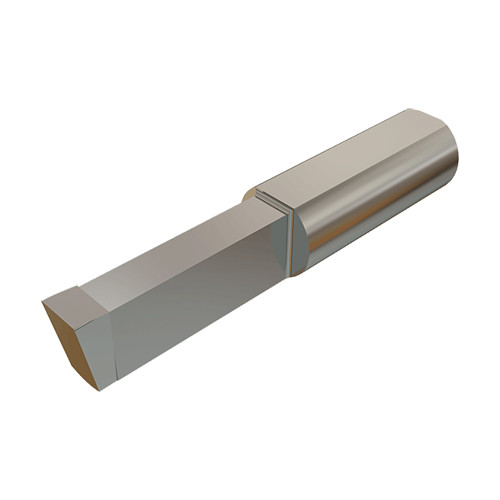

SCB 010.498.020-41 IC908
DIN6885 inserts for tight fit (P9) keyway broaching on lathe and milling machines.

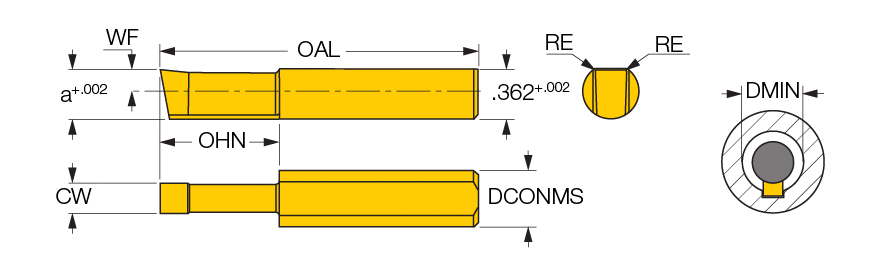

| Tool Type | Solid, Turning & Grooving | Overall Length (OAL) | 2.598″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Radius (RE) | 0.0079″ |
| Cutting Depth Maximum (CDX) | 0.1961″ | Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Cutting Edge Material | Carbide | Functional Width (WF) | 0.157″ |
| Grade | IC908 | Minimum Bore Diameter (DMIN) | 0.394″ |
| Coating | TiAlN | Application | | Ext. Broaching | Int. Broaching | |
| Internal/External | External | Body Material | Carbide |
| Measurement Type | Inch |
Product Features
| Family Description | DIN6885 inserts for tight fit (P9) keyway broaching on lathe and milling machines. | Country of Origin | Israel |
| Remarks | Typical conditions: Vc = 160-315 inch/min, ap = .0008-.0031 inch |
Shipping Info
Package Weight
0.123
