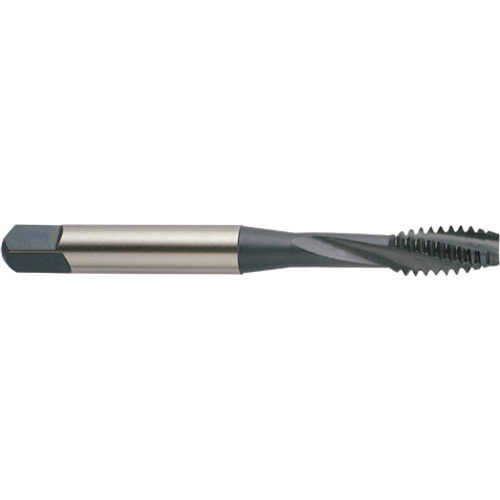

Spiral Flute Tap; 3/4″ - 16 ; 4-1/4″ OAL ; 4 FL ; P-HSS ; TiN ; H3 ; Series H9
| Thread Diameter Size (TDZ) | 3/4″ | Chamfer | 2P-3P |
| Threads per Inch (TPI) | 16 | Coating | TiN |
| Thread Standard | UNF | Shank Type | Square |
| Overall Length (OAL) | 4-1/4″ | End Shape | Modified Bottoming |
| Thread Cutting Part Length (THL) | 0.591″ | Coolant Supply Property (CSP) | External |
| Usable Length (LU) | 2.48″ | Length Group | 2.5xD |
| Connection Diameter Machine Side (DCONMS) | 0.59″ | Square Size | 0.442″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Tapping Prehole Diameter (Pre-hole) | 0.6932″ |
| Thread Tolerance Class (TCTR) | H3 | Series/List # | H9 |
| Standard | 302A | Thread Size | 3/4″ - 16 |
| Tool Type | Spiral Flute Tap |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
4.5
Package Width
1
Package Height
1
Package Weight
0.29
