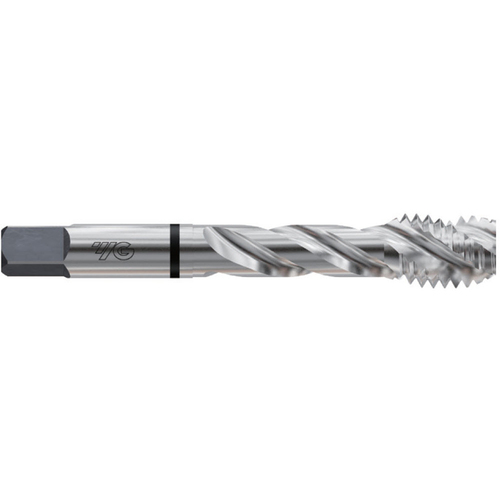

Spiral Flute Tap; M24 × 3 mm ; 124.71 mm OAL ; 4 FL ; HSS-EX ; Bright ; D8 ; Series T5
| Thread Diameter Size (TDZ) | M24 | Tool Type | Combo Tap |
| Thread Pitch (TP) | 3 mm | Chamfer | 2P - 3P |
| Thread Standard | M | Coating | Uncoated |
| Overall Length (OAL) | 124.71 mm | Shank Type | Square |
| Thread Cutting Part Length (THL) | 24 mm | End Shape | Modified Bottoming |
| Usable Length (LU) | 71.5 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 19.3 mm | Length Group | 2.5xD |
| Flute Count (NOF) | 4 | Square Size | 14.48 mm |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS-EX | Tapping Prehole Diameter (Pre-hole) | 21.27 mm |
| Thread Tolerance Class (TCTR) | D8 | Series/List # | T5 |
| Special Feature | Black Ring | Thread Size | M24 × 3 mm |
| Standard | 302A |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
5.25
Package Width
1.25
Package Height
1.25
Package Weight
0.553
