| Thread Diameter Size (TDZ) | M24 | Cutting Edge Material | HSS-PM |
| Thread Pitch (TP) | 2 mm | Thread Tolerance Class (TCTR) | D7 |

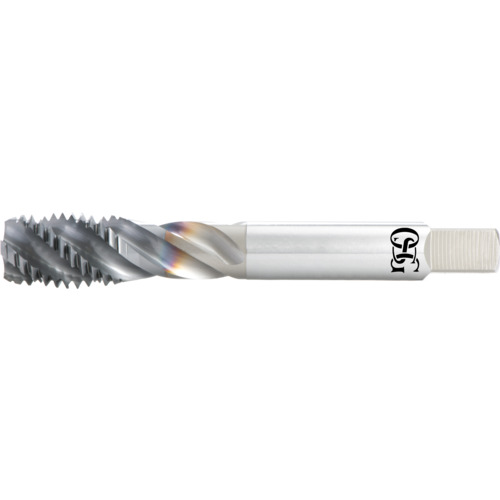

| Thread Standard | Metric | Tool Type | Spiral Flute Tap |
| Overall Length (OAL) | 140 mm | Chamfer | 2.5P |
| Thread Cutting Part Length (THL) | 30 mm | Coating | Vanadium |
| Usable Length (LU) | 68.4 mm | Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 19.3 mm | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | 16540 |
| Flute Helix Angle (FHA) | Variable |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
7.65000
Package Width
1.25000
Package Height
1.20000
Package Weight
.6050
