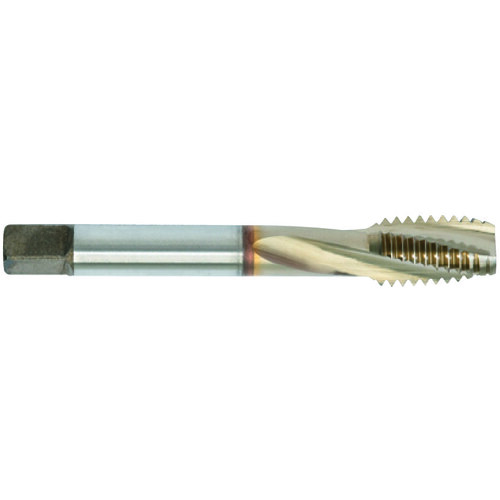

5/16″-18; Bottoming; GT6; SG Low Spiral Tap
Spiral Flute Tap; 5/16″ - 18 ; 2-23/32″ OAL ; 3 FL ; HSSCo ; | TiN | TiCN | ; GT6
| Thread Diameter Size (TDZ) | 5/16″ | Tool Type | Spiral Pointed Tap |
| Threads per Inch (TPI) | 18 | Chamfer | 1.5P |
| Overall Length (OAL) | 2-23/32″ | Coating | | TiN | TiCN | |
| Thread Cutting Part Length (THL) | 0.472″ | Special Features | High Performance |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Flute Type | Spiral |
| Flute Count (NOF) | 3 | Style | Bottoming |
| Flute Helix Angle (FHA) | CW | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSCo | Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | GT6 |
Product Features
| Country of Origin | Japan |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.099
