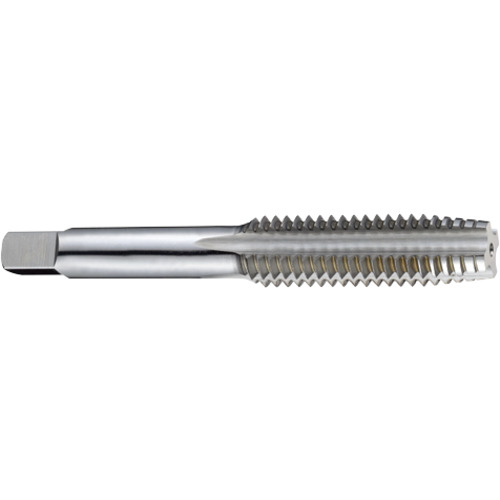

Straight Flute Tap; 5/8″ - 11 ; 3.81″ OAL ; 4 FL ; HSS ; Bright ; +0.005″ ; Series T7326
| Thread Diameter Size (TDZ) | 5/8″ | Coating | Uncoated |
| Threads per Inch (TPI) | 11 | Tapping Prehole Diameter (Pre-hole) | 0.6979″ |
| Thread Standard | UNC | Flute Length | 1-13/16″ |
| Overall Length (OAL) | 3.81″ | Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 1.81″ | End Shape | Plug |
| Usable Length (LU) | 1.81″ | Shank Type | Square |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS | Length Group | 2xD |
| Thread Tolerance Class (TCTR) | +0.005″ | Square Size | 0.36″ |
| Standard | 302 | Measurement Type | Inch |
| Tool Type | Hand Tap | Series/List # | T7326 |
| Chamfer | 4P-5P | Thread Size | 5/8″ - 11 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4
Package Width
0.875
Package Height
0.875
Package Weight
0.34
