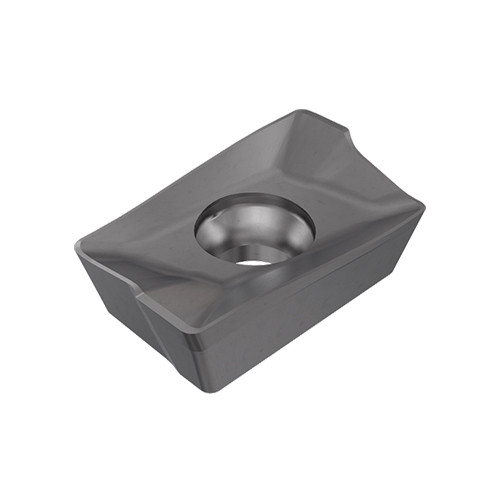

HM90 APKT 1003PDR IC830
Milling Insert; 0.451″ Length × 0.266″ Width × 0.139″ Thickness ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

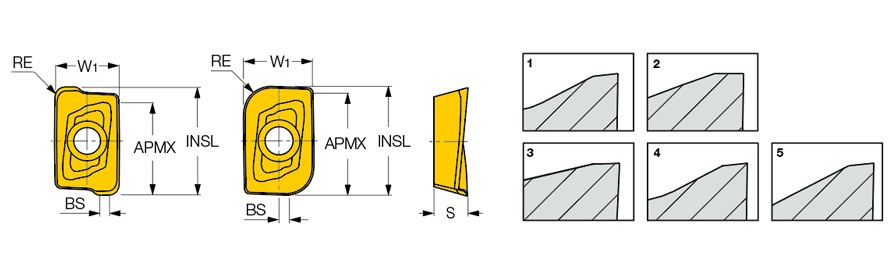

| Cutting Edge Length (L) | 0.451″ | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.451″ | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0315″ | Figure | 1 |
| Depth of Cut Maximum (APMX) | 0.386″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.266″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.139″ | Cutting Edge Effective Length (LE) | 0.404″ |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general applications. | Country of Origin | Israel |

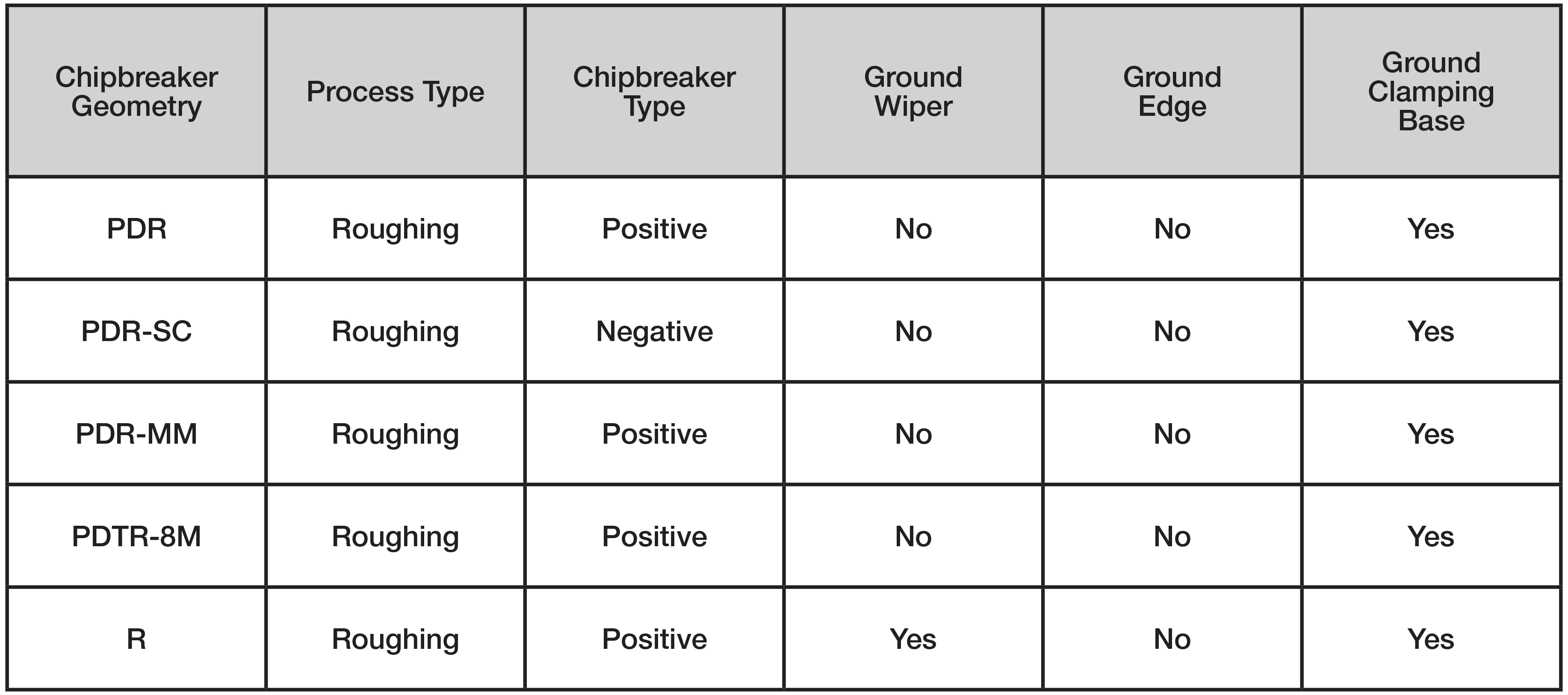

| Remarks | For inserts with corner radii larger than .059, the cutter body should be modified. For chip former details Click on More info |
Shipping Info
Additional Fees and Notes
0
Package Length
3.56000
Package Width
1.24000
Package Height
.32000
Package Weight
0.01
