HM90 APCT 100302R-PDR IC328
Milling Insert; 0.459″ Length × 0.274″ Width × 0.139″ Thickness ; IC328 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |

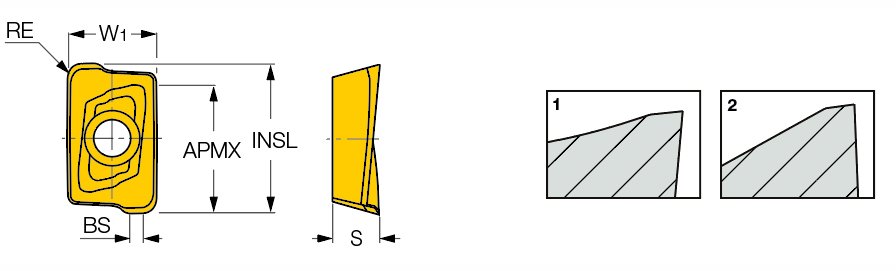

| Cutting Edge Length (L) | 0.459″ | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.459″ | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0079″ | Figure | 1 |
| Depth of Cut Maximum (APMX) | 0.386″ | Minimum Feed per Tooth (fz(min)) | 0.0024 ″/tooth |
| Insert Width (W1) | 0.274″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.139″ | Cutting Edge Effective Length (LE) | 0.398″ |
| Wiper Edge Length (BS) | 0.075″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 |
Product Features
| Family Description | HELI2000 insert with a sharp cutting edge used for semi-finish and finishing applications. Recommended for machining austenitic stainless steel, titanium and high temperature alloys. | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Length
3.89500
Package Width
1.56900
Package Height
.48400
Package Weight
0.007
Related Documentation

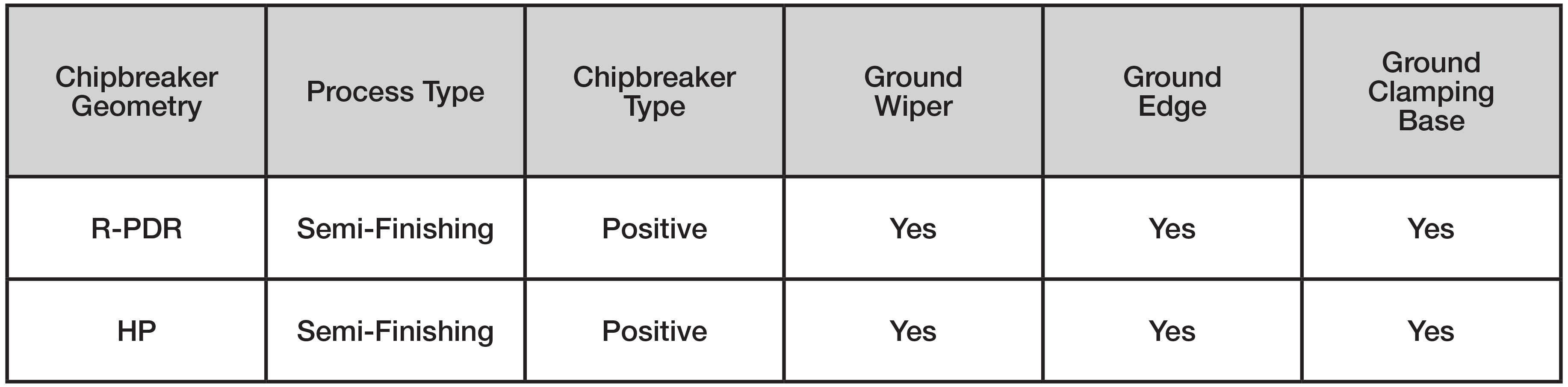

HM90 APCT 100308-HP o Peripherally ground insert with sharp cutting edges o Reinforced cutting edge with high positive rake angle o Ideal for semi-finishing and finishing applications o Recommended for machining materials which require a sharp positive cutting edge. Excellent performance, especially when milling PH high temperature alloys
