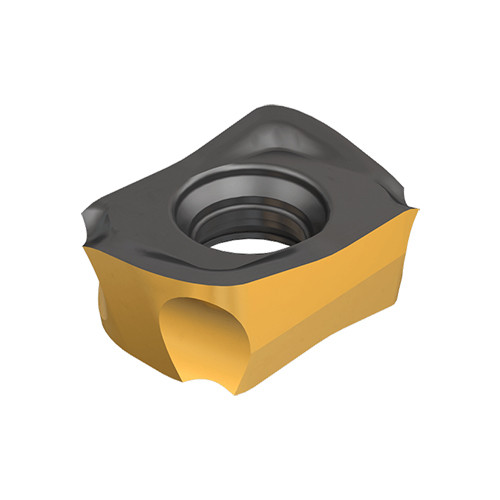

H490 ANKX 0904R12T-FF IC830
Milling Insert; 0.335″ Length × 0.244″ Width × 0.169″ Thickness ; IC830 ; Carbide ; AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | | Shape | 85° Parallelogram |

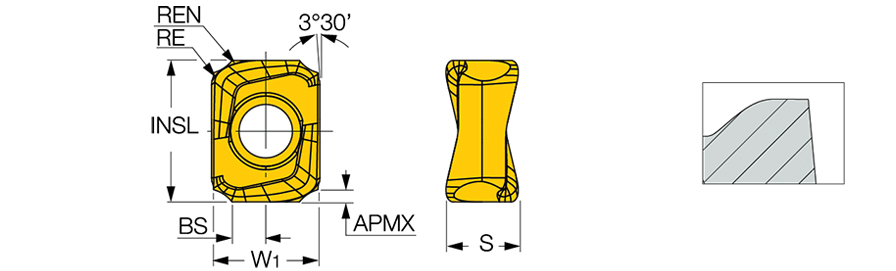

| Cutting Edge Length (L) | 0.335″ | Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Insert Length (INSL) | 0.335″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0394″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.028″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.244″ | Minimum Feed per Tooth (fz(min)) | 0.0197 ″/tooth |
| Insert Thickness (S) | 0.169″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.091″ | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | HELIDO 490 Line, double-sided rectangular inserts, with 4 helical cutting edges. Very strong construction, for fast feed milling at small depth of cut | Country of Origin | Israel |

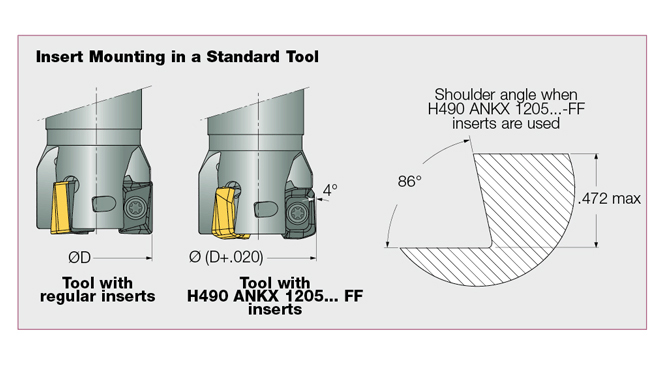

| Remarks | The cutting diameter of the tool is .004 larger than the nominal diameter when using this insert At D.O.C. larger than APMX, regular insert feed should be applied Enables ramping down at 1° maximum on 5/8 to 1.5 tool diameters |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.006
