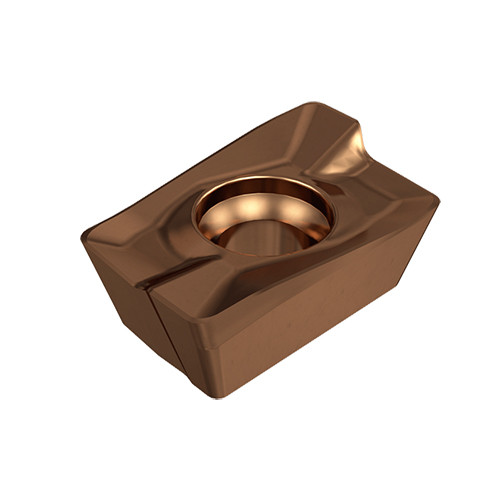

HM90 ADKT 1505PDR IC830
HELI2000 milling inserts with various corner radii for general use.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Cutting Edge Length (L) | 0.637″ | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.637″ | Tool Type | Single sided Inserts |

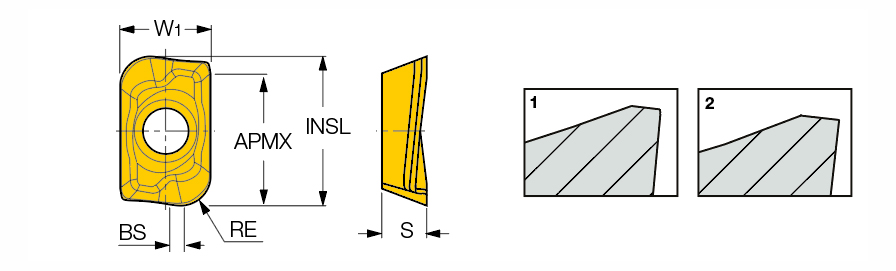

| Corner Radius (RE) | 0.0315″ | Figure | 2 |
| Depth of Cut Maximum (APMX) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.38″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.23″ | Cutting Edge Effective Length (LE) | 0.571″ |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | HELI2000 milling inserts with various corner radii for general use. | Country of Origin | Israel |
| Remarks | For inserts with corner radii larger than .079, the cutter body and seats should be modified Inserts with corner radii larger than .031 should be used on ADK & SM tools only on the face of the cutter. |
Shipping Info
LocalField10
0
Package Length
.60000
Package Width
.40000
Package Height
.10000
Package Weight
0.018
