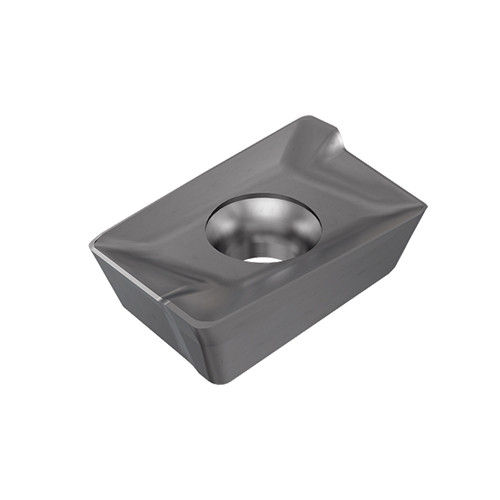

APKT 1003PDTR-76 IC830
HELIMILL Inserts with 2 helical cutting edges with ribs along the edge reducing heat transfer. Used for interrupted cuts.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Cutting Edge Length (L) | 0.433″ | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.433″ | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0197″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.386″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.264″ | Cutting Edge Effective Length (LE) | 0.386″ |
| Insert Thickness (S) | 0.137″ | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | HELIMILL Inserts with 2 helical cutting edges with ribs along the edge reducing heat transfer. Used for interrupted cuts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
