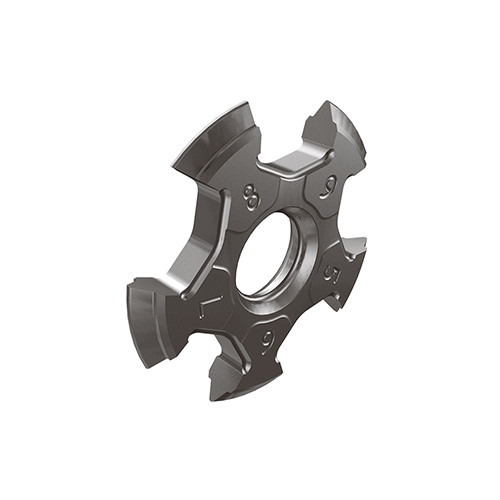

TTG-16E-28-UN IC908
External American UN full profile (UN, UNC, UNF, UNEF) indexable threading inserts with 10 threading corners, for general industry.
| Thread Standard | THFT | | Cutting Position | External |
| Threads per Inch (TPI) | 28 | Application | | Threading (Ext.) Groove Turn T | |

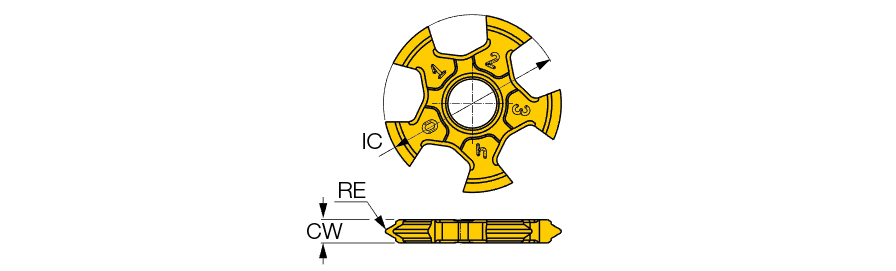

| Corner Radius (RE) | 0.0055″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Width (CW) | 0.083″ | Profile Included Angle (PNA) | 60 Degrees |
| Inscribed Circle Diameter (IC) | 0.63″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | External American UN full profile (UN, UNC, UNF, UNEF) indexable threading inserts with 10 threading corners, for general industry. | Country of Origin | Israel |
| Remarks | For cutting speed recommendations click More Info |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.016
