TIP 2MT-0.05 IC08

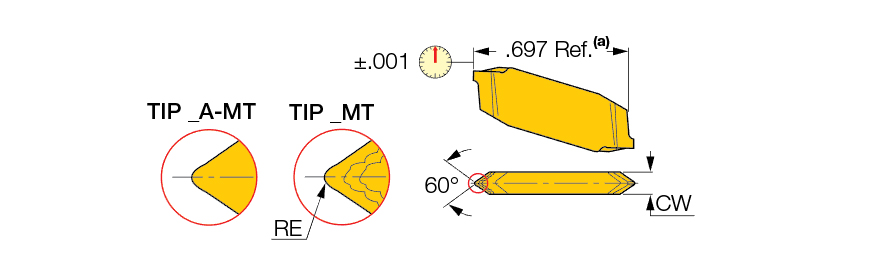

Precision ground 60° partial profile, double-ended threading inserts. TIP-MT - with a chipformer, TIP A-MT -without chipformer for short chipping materials.
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 2 mm |
| Corner Radius (RE) | 0.002″ | Cutting Edge Length (L) | 0.602″ |
| Cutting Width (CW) | 0.094″ | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC08 | Insert to Shank Reference | 0.45 mm |
| Coating | Uncoated | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Threads per Inch Maximum (TPIX) | 56 |
| Cutting Position | External | Threads per Inch Minimum (TPIN) | 12 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | | Body Material | Carbide |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Thread Form Type (THFT) | VP60 |
| Thread Pitch Minimum (TPN) | 0.45 mm |
Product Features
| Family Description | Precision ground 60° partial profile, double-ended threading inserts. TIP-MT - with a chipformer, TIP A-MT -without chipformer for short chipping materials. | Country of Origin | Israel |
| Remarks | (a) TIP inserts are .063 longer than GIP in the same pocket. Toolholder seat needs to be modified according to insert profile to ensure clearance. DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Package Weight
0.009
