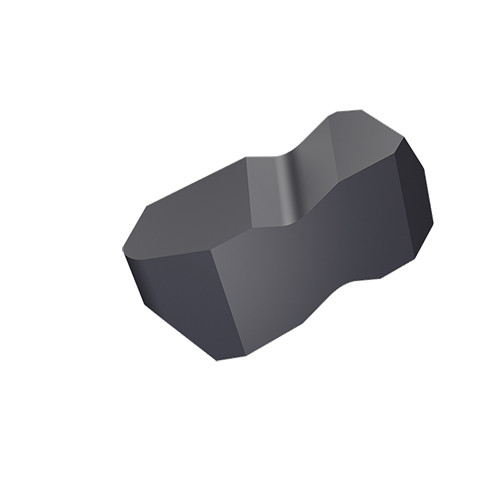

FLD-3040R IC908
Double-ended, precision, flat top partial profile threading inserts
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 5 /" | Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | |
| Corner Radius (RE) | 0.015″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.344″ | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | API |
Product Features
| Family Description | Double-ended, precision, flat top partial profile threading inserts | Country of Origin | USA |
| Remarks | DMIN according to related boring bar API Spec7 Internal & External tolerance: API Spec7 |
Shipping Info
LocalField10
0
Package Weight
0.04
