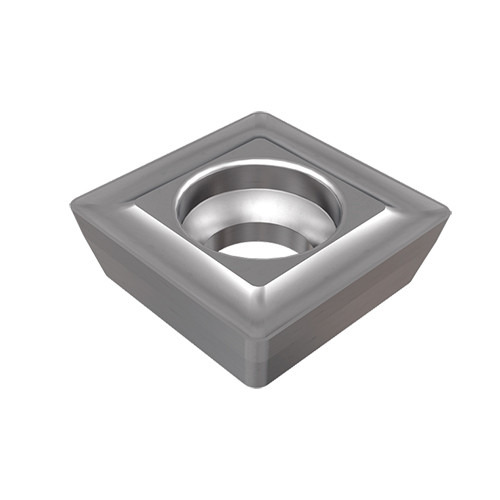

SOMT 160512-DT IC9080
Inserts with a DT chipformer for DR drills, for general applications at medium-to-high feed rates.

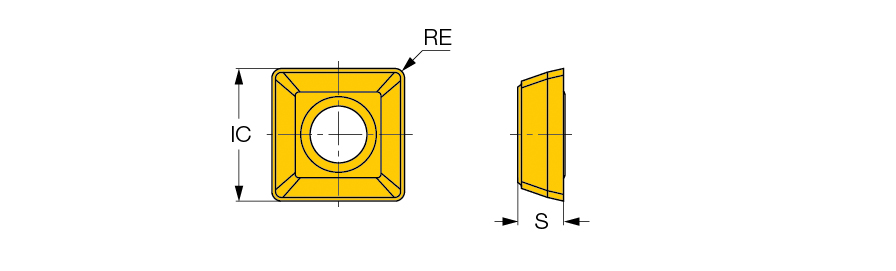

| Insert Thickness (S) | 0.219″ | Application | | Drill Mill | Drilling | |
| Inscribed Circle Diameter (IC) | 0.63″ | Applicable Material | | Steel | Cast Iron | |
| Corner Radius (RE) | 0.0472″ | Cutting Edge Material | Carbide |
| Shape | Square | Tool Type | Indexable drilling inserts |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | IC9080 | Body Material | Carbide |
Product Features
| Family Description | Inserts with a DT chipformer for DR drills, for general applications at medium-to-high feed rates. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.034
