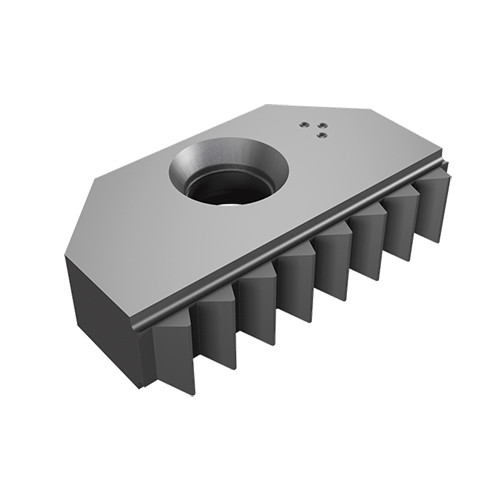

MT LNHU 3005 I6UN 908
Thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) full profile threads. Application: general industry.
| Thread Standard | THFT | | Grade | IC908 |

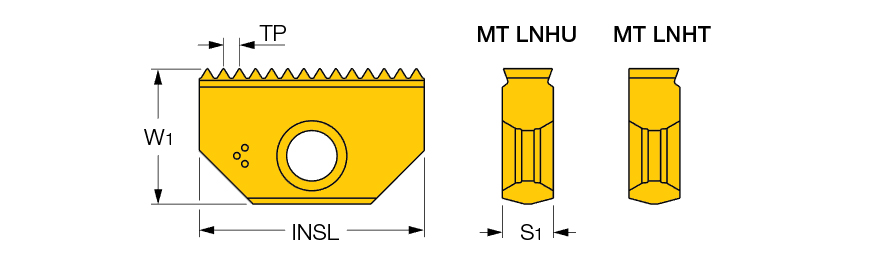

| Thread Pitch (TP) | 4.233 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 6 | Coating | TiAlN |
| Insert Length (INSL) | 1.181″ | Tool Type | Threading Regular Inserts |
| Insert Width (W1) | 0.657″ | Measurement Type | Inch |
| Insert Thickness Total (S1) | 0.22″ | Body Material | Carbide |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | INT |
Product Features
| Family Description | Thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) full profile threads. Application: general industry. | Country of Origin | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. |
Shipping Info
LocalField10
0
Package Weight
0.081
