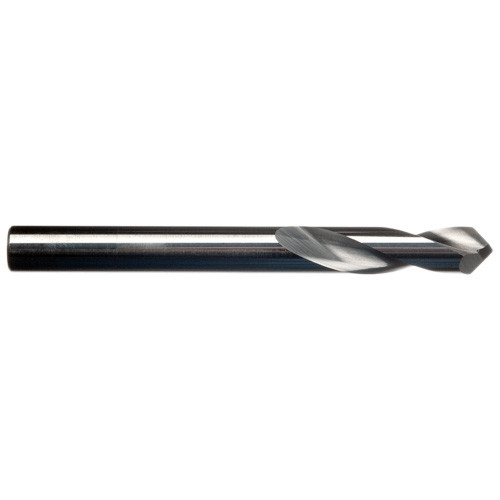

1/2″ × 3″ OAL 90 Degree Carbide Spotting Drill D23
| Drill Bit Size / Cutting Diameter (DC) | 1/2″ | Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/2″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.7 mm | Measurement Type | Inch |
| Point Angle (SIG) | 90 Degrees | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 25 Degrees | Grade | IM100 Uncoated |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Overall Length (OAL) | 3″ | Length Chip Flute (LCF) | 1-1/2″ |
Product Features
| Remarks | •Spot drill have a narrow chisel edge and a small web to assure accurate starting locations.•Used to improve the accuracy of secondary drill operations but can be used as a chamfering tool if the spot drill diameter is larger than the final hole size.•Spot drills are not designed to drill past the depth of the point angle and have no land or body clearance. | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.247
