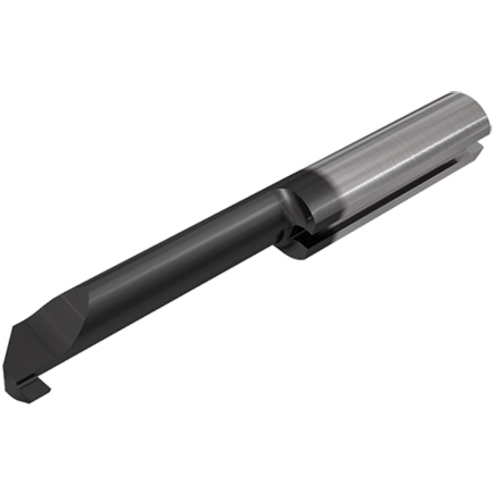

PICCO R 006.0100-22 IC228
Inserts for grooving and turning, Dmin .157″.

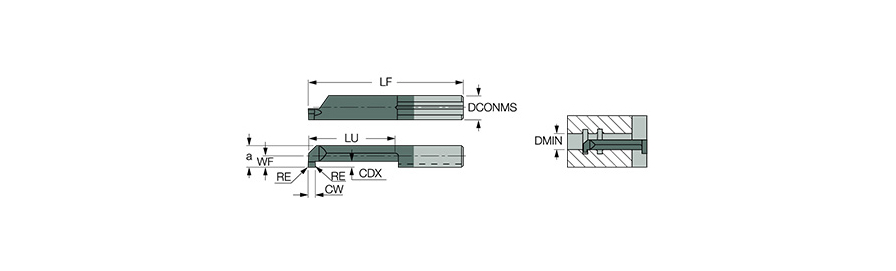

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0″ | Cutting Position | Internal |
| Cutting Width (CW) | 0.039″ | Application | | Int. Groove & Turn | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 0.071″ | Tool Type | Solid Carbide Turn Tool |
| Overall Length (OAL) | 1.457″ | Minimum Bore Diameter (DMIN) | 0.236″ |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 0.209″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC228 |
Product Features
| Family Description | Inserts for grooving and turning, Dmin .157″. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Length
2.25000
Package Width
.50000
Package Height
.50000
Package Weight
0.028
