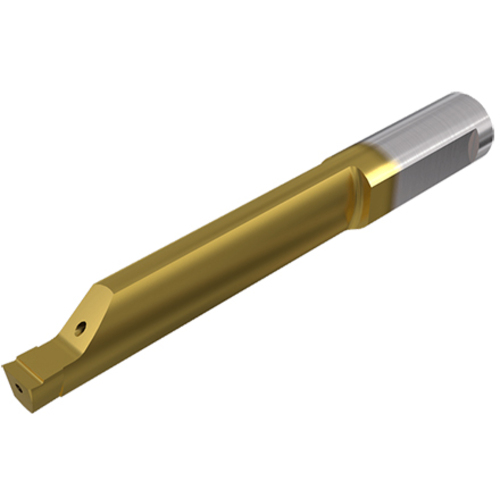

PICCO R 016.0300-20 IC1008
Inserts with an Internal Coolant Channels for deep face grooving at Dmin .63/.79″

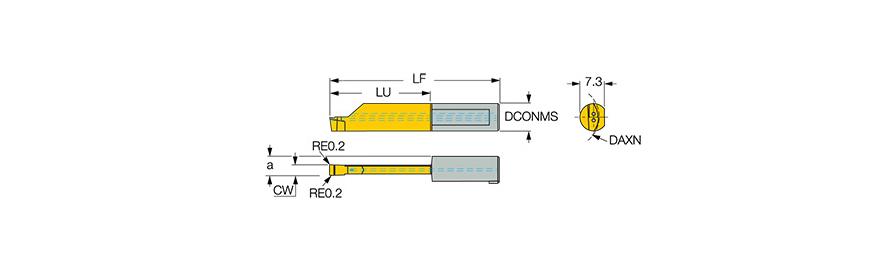

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Application | | Face Grooving | Int. Face Grooving | |
| Cutting Width (CW) | 0.118″ | Tool Type | Face Solid, Grooving &Turning grooving |
| Overall Length (OAL) | 1.575″ | Max. Face Grooving Feed (ffg(max)) | 0.002 ″/rev |
| Cutting Direction (HAND) | Right Hand | Min. Face Grooving Feed (ffg(min)) | 0.0004 ″/rev |
| Cutting Edge Material | Carbide | Axial Groove Outside Diameter Minimum (DAXN) | 0.63″ |
| Coating | TiAlN+TiN | Front End Width (a) | 0.217″ |
| Grade | IC1008 | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Cutting Position | External | Overhang Minimum (OHN) | 0.79″ |
Product Features
| Family Description | Inserts with an Internal Coolant Channels for deep face grooving at Dmin .63/.79″ | Country of Origin | Israel |
| Remarks | All inserts have two coolant holes which may be used with coolant pressure up to 1450 PSI |
Shipping Info
LocalField10
0
Package Length
2.15900
Package Width
.50400
Package Height
.50200
Package Weight
0.044
