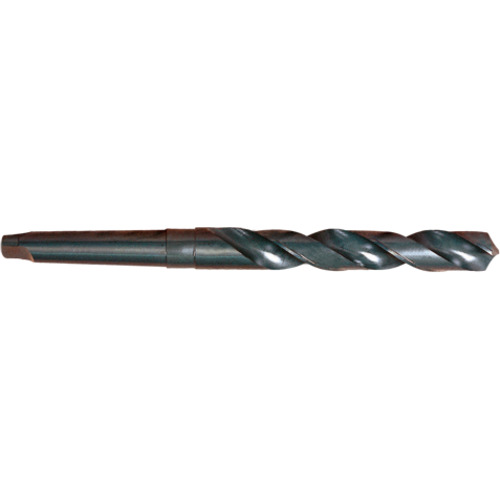

Morse Taper Shank Drill; 9/16″ Dia. × 2MT Shank × 8-3/4″ OAL × 4-7/8″ Flute Length ; 118 Degrees ; HSS ; Oxide ; Series D1211
| Measurement Type | Inch | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 9/16″ | Flute Length | 4-7/8″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ | Helix Angle | 33 Degrees |
| Decimal Equivalent | 0.5625″ | Flute Count (NOF) | 2 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.288 mm | Overall Length (OAL) | 8-3/4″ |
| Angle | 118 Degrees | Shank Type | Morse Taper |
| Applicable Material | | Steel | | Standard | ANSI |
| Coating | Oxide | Tool Type | Morse Taper Shank Twist Drill |
| Coolant Supply Property (CSP) | External | Series/List # | D1211 |
| Cutting Depth | 4-7/8″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
9.875
Package Width
0.875
Package Height
0.875
Package Weight
0.523
