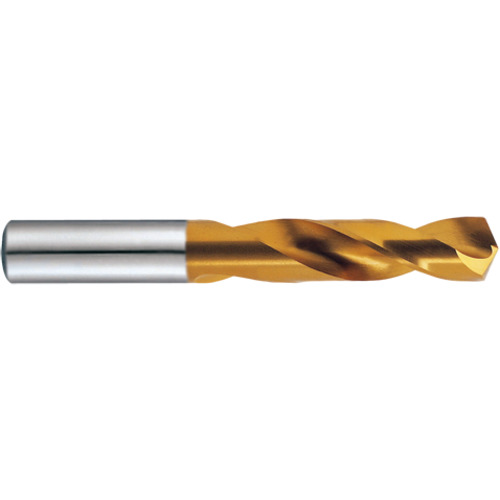

Screw Machine Drill; 17.25 mm Dia. × 17.25 mm Shank Dia. × 123 mm OAL × 62 mm Flute Length ; 135 Degrees ; HSS Co8 ; TiN ; Series D4107
Screw Machine Drill; 17.25 mm Dia. × 17.25 mm Shank Dia. × 123 mm OAL × 62 mm Flute Length ; 135 Degrees ; HSSCo8 ; TiN ; Series D4107
| Measurement Type | Metric | Flute Length | 62 mm |
| Drill Bit Size / Cutting Diameter (DC) | 17.25 mm | Helix Angle | 33 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.6791″ | Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.6791″ | Overall Length (OAL) | 123 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17.25 mm | Pack Size | 1 |
| Angle | 135 Degrees | Shank Type | Round |
| Applicable Material | | Steel | | Standard | DIN 1897 |
| Coating | TiN | Connection Diameter Machine Side (DCONMS) | 17.25 mm |
| Cutting Depth | 62 mm | Series/List # | D4107 |
| Cutting Edge Material | HSSCo8 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5
Package Width
0.875
Package Height
0.875
Package Weight
0.394
